99,016 bearing records · search, filter and compare

info@bearingscope.com

Unified technical catalogue

Model Search

Search verified bearing designations and technical parameters across SKF, FAG, INA, TIMKEN, NSK, KOYO, IKO, NACHI and NTN.

CAT / 09 BRANDS

Customer bearing search

Find a bearing model

Use a designation or exact metric dimensions. Advanced filters are available below.

Designation Brand Category Inside dmm Outside Dmm Width Bmm

Faceted search

Refine results

ABEC equivalent (radial ball bearings)Understand the mapping and its limits →

Checkboxes, lists and numeric fields refresh the results as soon as they change.

Independent technical reference catalogue. Verify the current manufacturer data and complete product suffix before selection.

Guides, tables & tools for “7206”

Browse all resources →

3 matching resources · Product filters do not filter these guides.

Practical guide · Industrial equipment

Compressor Bearings: Radial & Axial Model Shortlists

Review NU 206, 7206, 7306 and 6206 compressor-bearing references. Distinguish rotor radial support, thrust location and separate drive-motor duty.

Select for an application Practical guide · Industrial equipment

Pump Bearings: Radial & Thrust Model Selection

Explore 6205, 6306, 7206 and 7306 pump-bearing candidates with recorded dimensions and load ratings. Separate radial support from impeller thrust.

Select for an application Practical guide · Industrial equipment

Spindle Bearings: Precision Model & Preload Selection

Compare real SKF 7005 and 7206 precision records with FAG B7005 spindle bearings. Review preload, pairing, contact angle, lubrication and thermal growth.

Select for an application

Continue to product results ↓

Search results

Matches for “7206”

104 products

Auto-compare this model by brand →

CompareKOYO

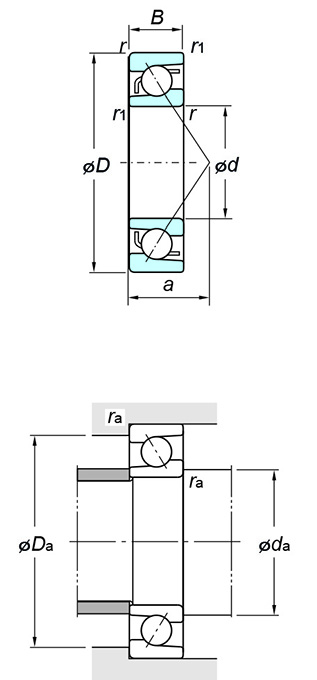

KOYO 7206 bearing

7206

Angular contact ball bearings · 20 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 28.1 kN
Static C0: 14.8 kN
Limit speed: 10000 r/min

CompareSKF

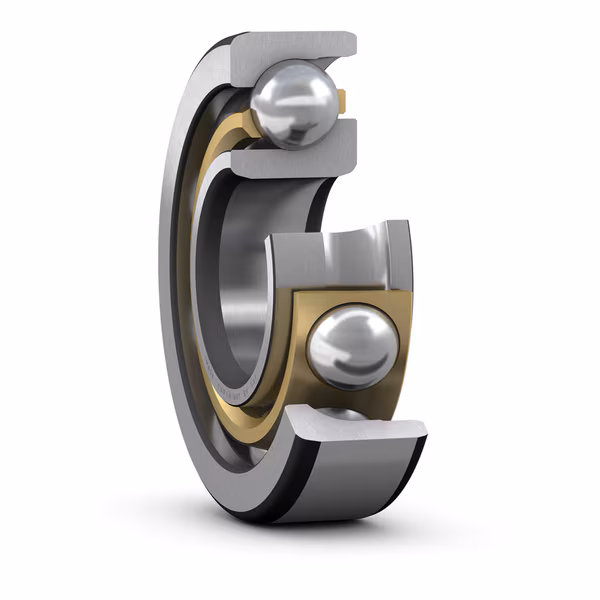

SKF 7206 ACCBM bearing

7206 ACCBM

Single row angular contact ball bearing with 25° contact angle · 71 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 27.5 kN
Static C0: 17.3 kN
Limit speed: 22000 r/min

CompareSKF

SKF 7206 ACDGA/HCP4A bearing

7206 ACDGA/HCP4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 23.4 kN
Static C0: 15.3 kN

CompareSKF

SKF 7206 ACDGA/P4A bearing

7206 ACDGA/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 23.4 kN
Static C0: 15.3 kN

CompareSKF

SKF 7206 ACDGB/HCP4A bearing

7206 ACDGB/HCP4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 23.4 kN
Static C0: 15.3 kN

CompareSKF

SKF 7206 ACDGB/P4A bearing

7206 ACDGB/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 23.4 kN
Static C0: 15.3 kN

CompareSKF

SKF 7206 ACDGC/P4A bearing

7206 ACDGC/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 23.4 kN
Static C0: 15.3 kN

CompareSKF

SKF 7206 ACDGD/P4A bearing

7206 ACDGD/P4A

Super-precision, high-capacity, universally matchable single row angular contact ball bearing · 74 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 23.4 kN
Static C0: 15.3 kN

CompareSKF

SKF 7206 ACD/HCP4A bearing

7206 ACD/HCP4A

Super-precision, high-capacity, single row angular contact ball bearing · 79 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 23.4 kN
Static C0: 15.3 kN

CompareSKF

SKF 7206 ACD/HCP4ADFB bearing

7206 ACD/HCP4ADFB

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 63 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/HCP4ADGA bearing

7206 ACD/HCP4ADGA

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 75 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4A bearing

7206 ACD/P4A

Super-precision, high-capacity, single row angular contact ball bearing · 79 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 16 mm
Dynamic C: 23.4 kN
Static C0: 15.3 kN

CompareSKF

SKF 7206 ACD/P4ADBA bearing

7206 ACD/P4ADBA

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 64 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4ADBB bearing

7206 ACD/P4ADBB

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 64 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4ADBC bearing

7206 ACD/P4ADBC

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 64 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4ADFB bearing

7206 ACD/P4ADFB

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 63 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4ADGA bearing

7206 ACD/P4ADGA

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 75 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4ADGB bearing

7206 ACD/P4ADGB

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 75 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4ADGC bearing

7206 ACD/P4ADGC

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 75 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4ADT bearing

7206 ACD/P4ADT

Matched set of two super-precision, high-capacity, d design, single row angular contact ball bearings · 65 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 32 mm
Dynamic C: 37.7 kN
Static C0: 30.5 kN

CompareSKF

SKF 7206 ACD/P4AQFCC bearing

7206 ACD/P4AQFCC

Matched set of four super-precision, high-capacity, d design, single row angular contact ball bearings · 58 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 64 mm
Dynamic C: 61.8 kN
Static C0: 61 kN

CompareSKF

SKF 7206 ACD/P4AQGC bearing

7206 ACD/P4AQGC

Matched set of four super-precision, high-capacity, d design, single row angular contact ball bearings · 61 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 64 mm
Dynamic C: 61.8 kN
Static C0: 61 kN

CompareSKF

SKF 7206 ACD/P4ATBTA bearing

7206 ACD/P4ATBTA

Matched set of three super-precision, high-capacity, d design, single row angular contact ball bearings · 57 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 48 mm
Dynamic C: 50.7 kN
Static C0: 45.5 kN

CompareSKF

SKF 7206 ACD/P4ATBTB bearing

7206 ACD/P4ATBTB

Matched set of three super-precision, high-capacity, d design, single row angular contact ball bearings · 57 parameters

Bore d: 30 mm
Outside D: 62 mm
Width B: 48 mm
Dynamic C: 50.7 kN
Static C0: 45.5 kN
