Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | TFE30 | |
| Bore diameter | d | 30 mm |
| Width | B | 48.5 mm |
| Mass | ≈m | 1.05 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 403163 | |
| Brand | INA | |
| Base Type | TFE30 | |
| Old Designation | ["TFE30"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

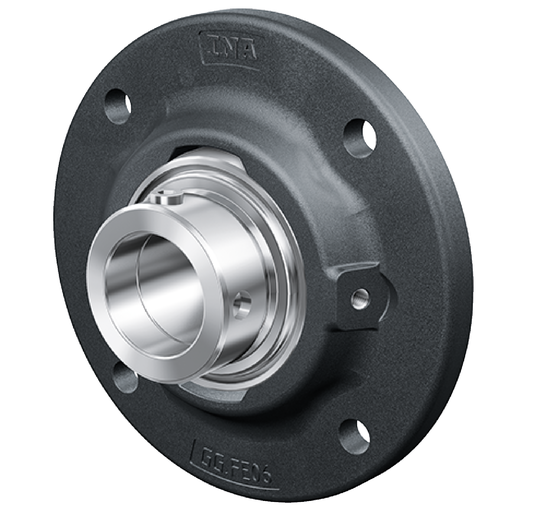

| Construction | Housing units TFE, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, T seals | |
| Short Description | Flanged housing unit |
Technical Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 48.5 mm | |
| Bore Diameter (D) | 30 mm | |
| Total Height Unit (U) | 40.7 mm | |
| Thickness Of Flange (A1) | 9.5 mm | |
| Flange Width (H) | 127 mm |
