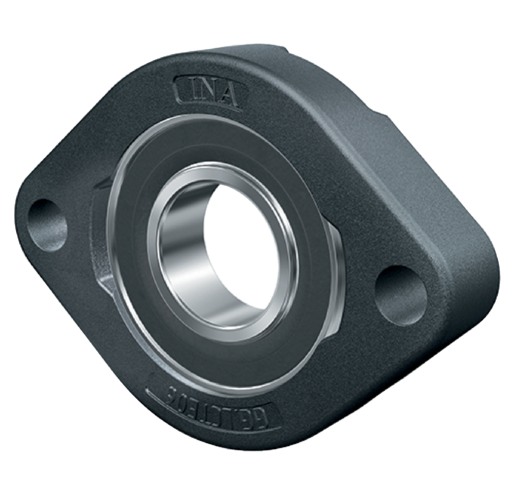

INA BLCTE30-XL

Flanged housing unit technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 30 mm
Outside diameterD: 84 mm
Mass≈m: 0.65 kg
Bore Diameter (D): 30 mm
Flange Width (L): 84 mm
Height Flange (H): 112.5 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Series		BLCTE30
Bore diameter	d	30 mm
Outside diameter	D	84 mm
Mass	≈m	0.65 kg

Manufacturer Identity5 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		403841
Brand		INA
Base Type		BLCTE30
Old Designation		["BLCTE30"]
X Life Marking		XL

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Flanged housing unit BLCTE..-XL
Short Description		Flanged housing unit

Technical Data4 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		30 mm
Flange Width (L)		84 mm
Height Flange (H)		112.5 mm
Thickness Of Flange (A1)		22.5 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA BLCTE30-XL
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
