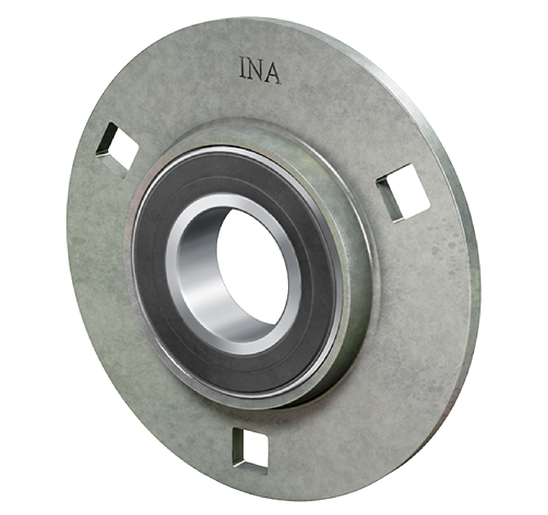

INA BA25-XL

Flanged housing unit technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 25 mm
Outside diameterD: 95 mm
Mass≈m: 0.3 kg
Bore Diameter (D): 25 mm
Height Flange (H): 95 mm
Thickness Of Flange (S): 2 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Series		BA25
Bore diameter	d	25 mm
Outside diameter	D	95 mm
Mass	≈m	0.3 kg

Manufacturer Identity5 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		403280
Brand		INA
Base Type		BA25
Old Designation		["BA25"]
X Life Marking		XL

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Flanged housing unit BA..-XL
Short Description		Flanged housing unit

Technical Data4 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		25 mm
Height Flange (H)		95 mm
Thickness Of Flange (S)		2 mm
Flange Width (H)		95 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA BA25-XL
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
