Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 35 mm |
| Outside diameter | D | 131.5 mm |
| Width | B | 102 mm |
| Mass | ≈m | 1.62 kg |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 404129 | |
| Brand | INA | |
| Base Type | RTUEL35 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

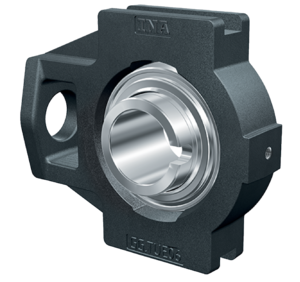

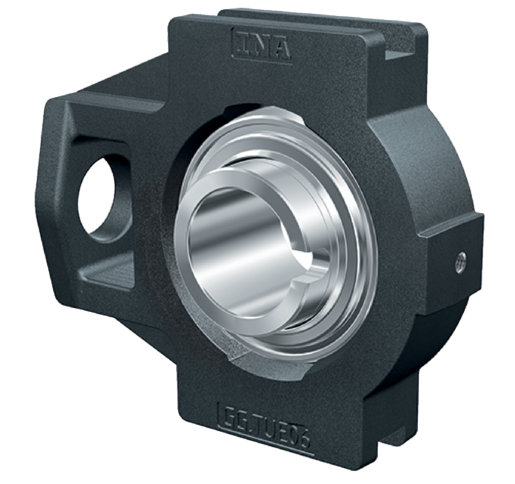

| Construction | Take-up housing unit RTUEL, RIBB cast iron TUE | |
| Short Description | Take-up housing unit |
Technical Data3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 102 mm | |
| Outside Diameter (D) | 131.5 mm | |
| Bore Diameter (D) | 35 mm |
