Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GRRY25 | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 95 mm |
| Width | B | 34.1 mm |
| Mass | ≈m | 0.37 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 402052 | |
| Brand | INA | |
| Base Type | GRRY25 | |
| Old Designation | ["GRRY 25 VA"] | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

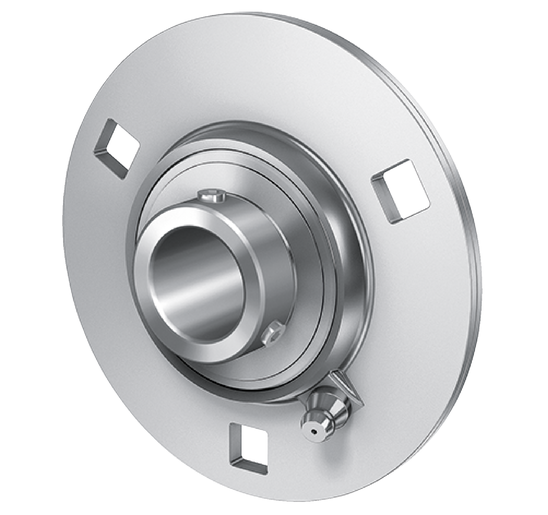

| Construction | Flanged housing unit GRRY..-VA | |
| Short Description | Flanged housing unit |
Technical Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 34.1 mm | |
| Bore Diameter (D) | 25 mm | |
| Total Height Unit (U) | 21.7 mm | |
| Height Flange (H) | 95 mm | |
| Thickness Of Flange (S) | 2 mm | |
| Height Flange (H2) | 95 mm |
