Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|

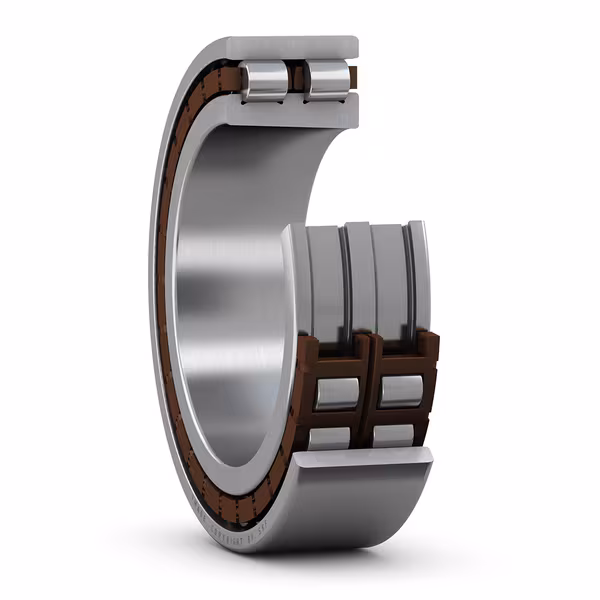

| Variant / construction | Super-precision cylindrical roller bearings | |
| Bore diameter | d | 45 mm |
| Outside diameter | D | 75 mm |
| Width | B | 23 mm |
| Basic dynamic load rating | C | 50.1 kN |
| Basic static load rating | C0 | 65.5 kN |
| Fatigue load limit | Pu | 7.65 kN |
| Mass | ≈m | 0.384 kg |
| Internal clearance | C1 | |
| Sealing | Without | |
| Cage | Non-metallic | |
| Bearing material | Bearing steel | |
| Lubricant | None |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | 45.0 mm | |
| Outside diameter | 75.0 mm | |
| Width | 23.0 mm |
Product identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official product category | Super-precision cylindrical roller bearings | |
| Official taxonomy path | /products/super-precision-bearings/cylindrical-roller-bearings | |
| Structure group ID | BC2_010 | |
| Available from SKF | Yes | |
| Remanufacturable | No |
Engineering — Abutment dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Abutment diameter shaft | d a | min. 50 mm |
| Abutment diameter housing | D a | min. 69 mm |
| Abutment diameter housing | D a | max. 70 mm |
| Fillet radius | r a | max. 1 mm |
| Oil nozzle position (not for variants with TNHA cage) | d n | 66.3 mm |
Engineering — Calculation data7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | C | 50.1 kN |
| Basic static load rating | C 0 | 65.5 kN |
| Fatigue load limit | P u | 7.65 kN |
| Attainable speed for grease lubrication | 12000 r/min | |
| Attainable speed for oil-air lubrication | 14000 r/min | |
| Reference grease quantity | G ref | 2.4 cm³ |
| Static radial stiffness (guideline value) | 940 N/µm |
Engineering — Dimensions7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 45 mm |
| Outside diameter | D | 75 mm |
| Width | B | 23 mm |
| Shoulder diameter inner ring (NN design) | d 1 | 56.3 mm |
| Raceway diameter outer ring (NN design) | E | 67.5 mm |
| Chamfer dimension outer ring | r 1,2 | min. 1 mm |
| Permissible axial displacement from the normal position of one bearing ring relative to the other (all) | s | max. 1.5 mm |
Engineering — Engineering specifications1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Bore type | Cylindrical |
Logistics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Product net weight | 0.384 kg | |
| eClass code | 23-05-09-01 | |
| UNSPSC code | 31171505 |
Performance4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | 50.1 kN | |
| Basic static load rating | 65.5 kN | |
| Attainable speed for grease lubrication | 12000.0 r/min | |
| Attainable speed for oil-air lubrication | 14000.0 r/min |
Properties16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bearing part | Complete bearing | |
| Number of rows | 2 | |
| Bore type | Cylindrical | |
| Cage | Non-metallic | |
| Design | NN | |
| Number of flanges, outer ring | 0 | |
| Number of flanges, inner ring | 3 | |
| Loose flange | None | |
| Radial internal clearance | C1 | |
| Tolerance class | Class SP (SP) | |
| Material, bearing | Bearing steel | |
| Coating | Without | |
| Sealing | Without | |
| Lubricant | None | |
| Relubrication feature | Without | |
| Indicative carbon footprint for new product | 1.4 kg CO 2 e |
