Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|

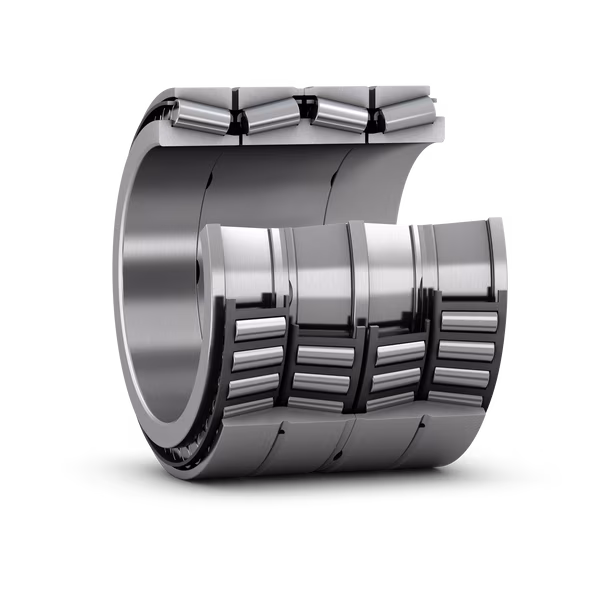

| Variant / construction | Tapered roller bearings | |
| Bore diameter | d | 450 mm |
| Outside diameter | D | 595 mm |
| Basic dynamic load rating | C | 5500 kN |
| Basic static load rating | C0 | 16300 kN |
| Fatigue load limit | Pu | 1220 kN |
| Mass | ≈m | 296 kg |
| Sealing | Without | |
| Cage | Sheet metal | |
| Lubricant | None |
Dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | 450.0 mm | |
| Outside diameter | 595.0 mm | |
| Width, total | 390.0 mm | |
| Width, inner ring | 390.0 mm | |
| Width, outer ring | 352.0 mm | |
| Contact angle | 12.5 ° |
Product identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official product category | Tapered roller bearings | |
| Official taxonomy path | /products/rolling-bearings/roller-bearings/tapered-roller-bearings/four-row-tapered-roller-bearings | |
| Structure group ID | BT4_002 | |
| Available from SKF | Yes | |
| Remanufacturable | Yes |
Engineering — Calculation data10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | C | 5500 kN |
| Basic static load rating | C 0 | 16300 kN |
| Fatigue load limit | P u | 1220 kN |
| Comparative radial load rating | C F | 1460 kN |
| Comparative axial load rating | C Fa | 236 kN |
| Thrust factor | K | 1.8 |
| Limiting value | e | 0.33 |
| Calculation factor | Y 1 | 2 |
| Calculation factor | Y 2 | 3 |
| Calculation factor | Y 0 | 2 |
Engineering — Dimensions7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 450 mm |
| Outside diameter | D | 595 mm |
| Total bearing width over inner rings | B | 390 mm |
| Total bearing width over outer rings | T | 352 mm |
| Abutment diameter shaft | d 1 | ≈ 522 mm |
| Abutment diameter housing | D 1 | ≈ 573 mm |
| Inner ring radius (chamfer) | r 1,2 | min. 3 mm |
Engineering — Engineering specifications1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Bore type | Cylindrical |
Logistics2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Product net weight | 296.0 kg | |
| eClass code | 23-05-09-10 |
Performance2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | 5500.0 kN | |
| Basic static load rating | 16300.0 kN |
Properties15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bearing part | Complete bearing | |
| Design | TQI | |
| Number of rows | 4 | |
| Locating feature, bearing outer ring | Without | |
| Bore type | Cylindrical | |
| Cage | Sheet metal | |
| Arrangement of contact angle (double-row bearing) | Not applicable | |
| Matched arrangement | No | |
| Coating | Without | |
| Sealing | Without | |
| Lubricant | None | |
| Relubrication feature | Without | |
| Candidate for remanufacturing | Yes | |
| Indicative carbon footprint for new product | 1095.0 kg CO 2 e | |
| Indicative carbon footprint for remanufactured product | 364.0 kg CO 2 e |
