Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications15 parameters
| Parameter | Symbol | Value |
|---|---|---|

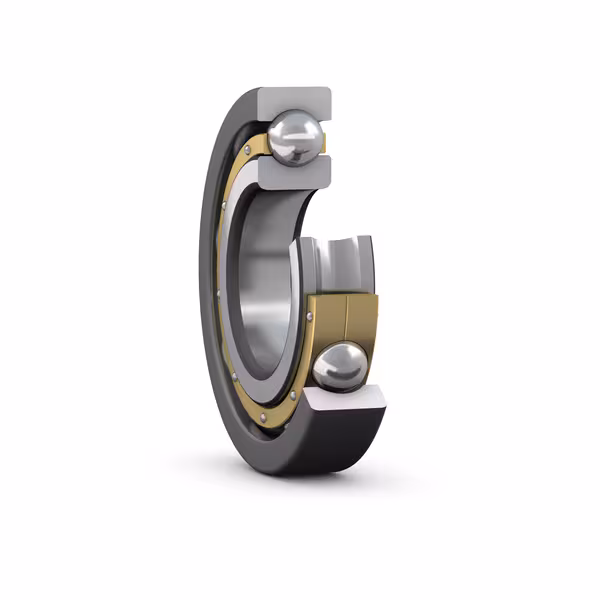

| Variant / construction | Deep groove ball bearings | |
| Bore diameter | d | 60 mm |
| Outside diameter | D | 95 mm |
| Width | B | 18 mm |
| Basic dynamic load rating | C | 30.7 kN |
| Basic static load rating | C0 | 23.2 kN |
| Fatigue load limit | Pu | 0.98 kN |
| Reference speed | nref | 15000 r/min |
| Limiting speed | nG | 13000 r/min |
| Mass | ≈m | 0.473 kg |
| Internal clearance | C4 | |
| Sealing | Without | |
| Cage | Machined brass | |
| Bearing material | Bearing steel | |
| Lubricant | None |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | 60.0 mm | |
| Outside diameter | 95.0 mm | |
| Width | 18.0 mm |
Product identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official product category | Deep groove ball bearings | |
| Official taxonomy path | /products/rolling-bearings/ball-bearings/deep-groove-ball-bearings | |
| Structure group ID | BB1_503 | |
| Available from SKF | Yes | |
| Remanufacturable | No |
Engineering — Calculation data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | C | 30.7 kN |
| Basic static load rating | C 0 | 23.2 kN |
| Fatigue load limit | P u | 0.98 kN |
| Reference speed | 15000 r/min | |
| Limiting speed | 13000 r/min | |
| Calculation factor | f 0 | 15.6 |
Engineering — Dimensions7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 60 mm |
| Outside diameter | D | 95 mm |
| Width | B | 18 mm |
| Shoulder diameter inner ring | d 1 | ≈ 71.3 mm |
| Shoulder diameter outer ring | D 1 | ≈ 83.7 mm |
| Recess diameter outer ring shoulder | D 2 | ≈ 86.5 mm |
| Chamfer dimension | r 1,2 | min. 1.1 mm |
Logistics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Product net weight | 0.473 kg | |
| eClass code | 23-05-08-01 | |
| UNSPSC code | 31171537 |
Performance4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | 30.7 kN | |
| Basic static load rating | 23.2 kN | |
| Reference speed | 15000.0 r/min | |
| Limiting speed | 13000.0 r/min |
Properties13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Filling slots | Without | |
| Number of rows | 1 | |
| Locating feature, bearing outer ring | Without | |
| Bore type | Cylindrical | |
| Cage | Machined brass | |
| Matched arrangement | No | |
| Radial internal clearance | C4 | |
| Material, bearing | Bearing steel | |
| Coating | Insulation coating on outer ring | |
| Sealing | Without | |
| Lubricant | None | |
| Relubrication feature | Without | |
| Indicative carbon footprint for new product | 1.8 kg CO 2 e |
