Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|

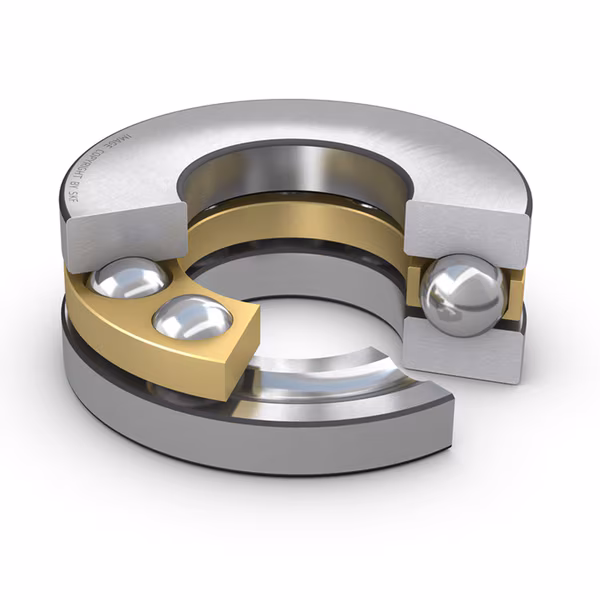

| Variant / construction | Thrust ball bearings | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 58 mm |
| Height | H | 29.808 mm |
| Basic dynamic load rating | C | 65 kN |
| Basic static load rating | C0 | 110 kN |
| Reference speed | nref | 3200 r/min |
| Limiting speed | nG | 4500 r/min |
| Mass | ≈m | 0.454 kg |
| Bearing material | Bearing steel |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | 25.0 mm | |
| Outside diameter | 58.0 mm | |
| Height | 29.808 mm |
Product identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official product category | Thrust ball bearings | |
| Official taxonomy path | /products/rolling-bearings/ball-bearings/thrust-ball-bearings | |
| Structure group ID | BD1_001_BDC_001 | |
| Available from SKF | Yes | |
| Remanufacturable | No |
Logistics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Product net weight | 0.454 kg | |
| eClass code | 23-05-10-01 | |
| UNSPSC code | 31171507 |
Performance4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | 65.0 kN | |
| Basic static load rating | 110.0 kN | |
| Reference speed | 3200.0 r/min | |
| Limiting speed | 4500.0 r/min |
Properties7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Axial load capability | Single-direction | |
| Number of rows | 1 | |
| Housing washer type | Flat | |
| Tolerance class | Normal | |
| Material, bearing | Bearing steel | |
| Coating | Without | |
| Indicative carbon footprint for new product | 1.7 kg CO 2 e |
