Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 200 mm |
| Outside diameter | D | 280 mm |
| Width | B | 15 mm |
| Fatigue load limit | Pu | 151 kN |
| Limiting speed | nG | 1600 r/min |
| Mass | ≈m | 8.9 kg |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 080-000-000 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official Category Path | Spherical thrust roller bearings | |
| Official Classification 1 | Spherical thrust roller bearings |

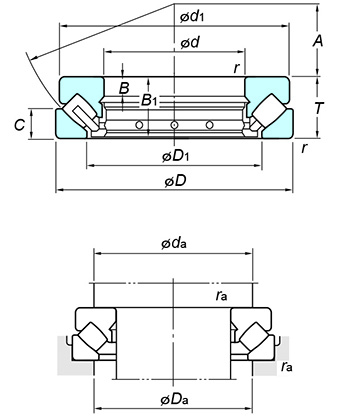

Technical Data18 parameters
| Parameter | Symbol | Value |
|---|---|---|
| d | 200 mm | |
| D | 280 mm | |
| T | 48 mm | |
| R(Min.) | 2 mm | |
| Basic Load Ratings Ca | 641 kN | |
| Basic Load Ratings C0A | 2170 kN | |
| Fatigue Load Limit : Cu | 151 kN | |
| Limiting Speeds(Oil Lub.) | 1600 min-1 | |
| D1 | 271 mm | |
| D1 | 236 mm | |
| B | 15 mm | |
| B1 | 45 mm | |
| C | 24 mm | |
| A | 108 mm | |
| Da(Min.) | 235 mm | |
| Da(Max.) | 255 mm | |
| Ra(Max.) | 2 mm | |
| Mass(Refer.) | 8.90 kg |
