Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 50 mm |
| Outside diameter | D | 126 mm |
| Width | B | 30 mm |
| Basic dynamic load rating | C | 28.5 kN |
| Basic static load rating | C0 | 49.5 kN |
| Limiting speed | nG | 440 r/min |
| Mass | ≈m | 1.61 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 397844 | |
| Brand | INA | |

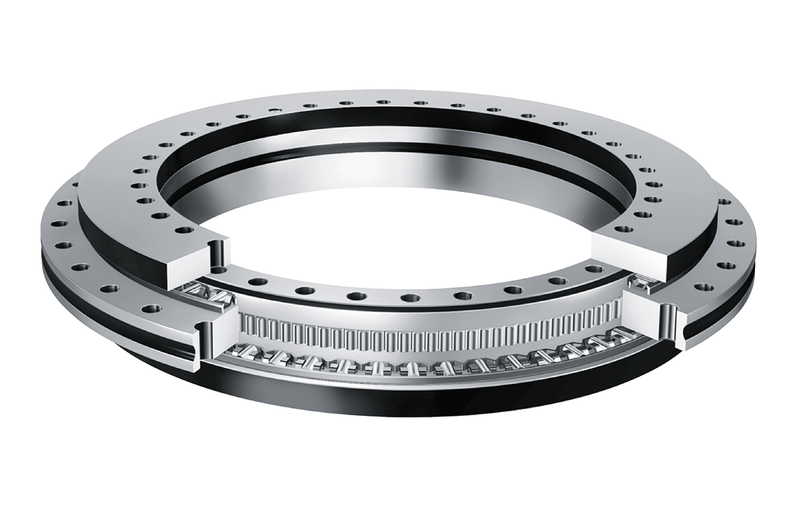

| Base Type | YRT50 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Axial/radial bearings YRT, double direction, for screw mounting | |
| Short Description | Axial/radial roller bearing |
Technical Data36 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 50 mm | |
| Outside Diamater (D) | 126 mm | |
| Total Height (H) | 30 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 28,500 N | |
| Basic Static Load Rating, Radial (C0R) | 49,500 N | |
| Basic Dynamic Load Rating, Axial (Ca) | 56,000 N | |
| Basic Static Load Rating, Axial (C0A) | 280,000 N | |
| Tilting Rigidity Of Bearing Position (Ckl) | 1,250 Nm/mrad | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 440 1/min | |
| Pitch Quantity (N) | 12 | |
| Bore Diameter Lower Tolerance (Bore Diamete) | -0.008 mm | |
| Width Of Outer Ring (C) | 10 mm | |
| Height Contact Face Outerring H1 Upper Tolerance (Height Conta) | 0.025 mm | |
| Height Contact Face Outerring H2 Lower Tolerance (Height Conta) | -0.02 mm | |
| Maximum Diameter Inner Ring (D1 Max) | 105 mm | |
| Bore Diameter Upper Tolerance (Bore Diamete) | 0 mm | |
| Height Contact Face Outerring H1 Lower Tolerance (Height Conta) | -0.025 mm | |
| Screw Tightening Torque (Ma) | 8.5 Nm | |
| Pitch Separation Angle (T) | 30 ° | |
| Height Contact Face Outer Ring (H1) | 20 mm | |
| Outside Diameter Lower Tolerance (Outside Diam) | -0.011 mm | |
| Fixing Holes Diameter Outer Ring (D3) | 5.6 mm | |
| Tilting Rigidity Of Rolling Element Set (Ckw) | 5,900 Nm/mrad | |
| Radial Rigidity Of Rolling Element Set (Crw) | 1,500 N/µm | |
| Bearing Friction Torque At 5 1/Min (Mr) | 2.5 Nm | |
| Pitch Circle Diameter Fixing Holes In Inner Ring (J) | 63 mm | |
| Axial Rigidity Of Bearing Position (Cal) | 1,300 N/µm | |
| Axial Rigidity Of Rolling Element Set (Cal) | 6,200 N/µm | |
| Fixing Holes Diameter Inner Ring (D1) | 5.6 mm | |
| Height Contact Face Outerring H2 Upper Tolerance (Height Conta) | 0.02 mm | |
| Pitch Circle Diameter Fixing Holes In Outer Ring (J1) | 116 mm | |
| Radial Rigidity Of Bearing Position (Crl) | 1,100 N/µm | |
| Height Contact Face Outer Ring (H2) | 10 mm | |
| Outside Diameter Upper Tolerance (Outside Diam) | 0 mm |
