Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | YRT80 | |
| Bore diameter | d | 80 mm |
| Outside diameter | D | 146 mm |
| Width | B | 35 mm |
| Basic dynamic load rating | C | 44 kN |
| Basic static load rating | C0 | 98 kN |
| Limiting speed | nG | 350 r/min |
| Mass | ≈m | 2.179 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 397846 | |
| Brand | INA | |
| Base Type | YRT80 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

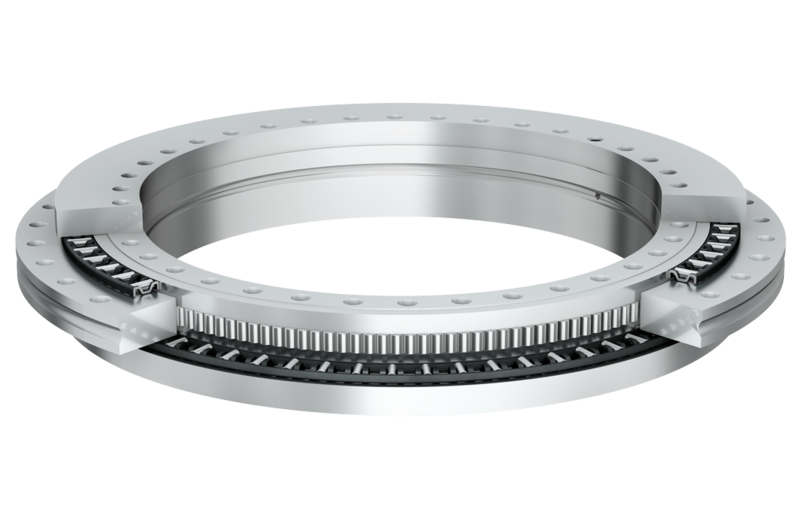

| Construction | Axial/radial bearings YRT, double direction, for screw mounting | |
| Short Description | Axial/radial roller bearing |
Technical Data38 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 80 mm | |
| Outside Diamater (D) | 146 mm | |
| Total Height (H) | 35 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 44,000 N | |
| Basic Static Load Rating, Radial (C0R) | 98,000 N | |
| Basic Dynamic Load Rating, Axial (Ca) | 38,000 N | |
| Basic Static Load Rating, Axial (C0A) | 158,000 N | |
| Tilting Rigidity Of Bearing Position (Ckl) | 2,500 Nm/mrad | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 350 1/min | |
| Pitch Quantity (N) | 12 | |
| Bore Diameter Lower Tolerance (Bore Diamete) | -0.009 mm | |
| Width Of Outer Ring (C) | 12 mm | |
| Counterbore Diameter Of Fixing Holes (D2) | 10 mm | |
| Height Contact Face Outerring H1 Upper Tolerance (Height Conta) | 0.025 mm | |
| Height Contact Face Outerring H2 Lower Tolerance (Height Conta) | -0.2 mm | |
| Maximum Diameter Inner Ring (D1 Max) | 130 mm | |
| Bore Diameter Upper Tolerance (Bore Diamete) | 0 mm | |
| Height Contact Face Outerring H1 Lower Tolerance (Height Conta) | -0.025 mm | |
| Screw Tightening Torque (Ma) | 8.5 Nm | |
| Pitch Separation Angle (T) | 30 ° | |
| Height Contact Face Outer Ring (H1) | 23.35 mm | |
| Outside Diameter Lower Tolerance (Outside Diam) | -0.011 mm | |
| Fixing Holes Diameter Outer Ring (D3) | 4.6 mm | |
| Counterbore Depth Of Fixing Holes (A) | 4 mm | |
| Tilting Rigidity Of Rolling Element Set (Ckw) | 6,300 Nm/mrad | |
| Radial Rigidity Of Rolling Element Set (Crw) | 2,600 N/µm | |
| Bearing Friction Torque At 5 1/Min (Mr) | 3 Nm | |
| Pitch Circle Diameter Fixing Holes In Inner Ring (J) | 92 mm | |
| Axial Rigidity Of Bearing Position (Cal) | 1,600 N/µm | |
| Axial Rigidity Of Rolling Element Set (Cal) | 4,000 N/µm | |
| Fixing Holes Diameter Inner Ring (D1) | 5.6 mm | |
| Height Contact Face Outerring H2 Upper Tolerance (Height Conta) | 0.2 mm | |
| Pitch Circle Diameter Fixing Holes In Outer Ring (J1) | 138 mm | |
| Radial Rigidity Of Bearing Position (Crl) | 1,800 N/µm | |
| Height Contact Face Outer Ring (H2) | 11.65 mm | |
| Outside Diameter Upper Tolerance (Outside Diam) | 0 mm |
