Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 3.8 mm |
| Width | B | 31.8 mm |
| Height | H | 10 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2269062 | |
| Brand | INA | |
| Base Type | TKVD32 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | full guideway for linear recirculating ball bearing units | |

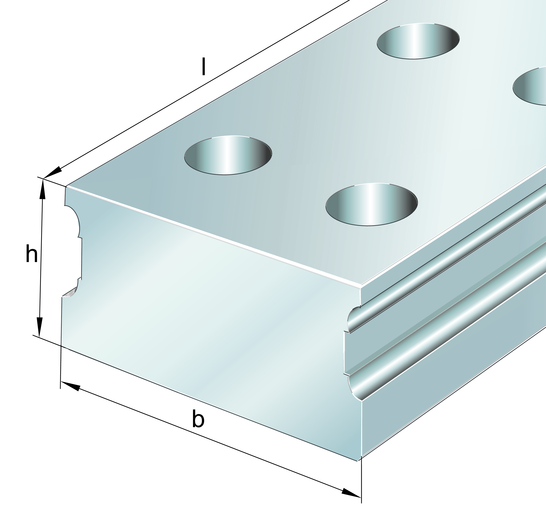

| Short Description | Guideways for linear recirculating ball bearing unit |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 31.8 mm | |
| Height (H) | 10 mm | |
| Distance (Ar Min) | 20 mm | |
| Length (H1) | 3.4 mm | |
| Max Length Single Piece Guideway (Lmax) | 1,960 mm | |
| Increment (Jl) | 40 mm | |
| Distance (A5) | 6.9 mm | |
| Distance (Ar Max) | 34 mm | |
| Increment (Jb) | 18 mm | |
| Tightening Torque (K1 Ma) | 2.5 Nm | |
| Distance (Al Max) | 34 mm | |
| Distance (Al Min) | 20 mm | |
| Bore Diameter (D1) | 3.8 mm |
