Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 3.8 mm |
| Width | B | 13.5 mm |
| Height | H | 14 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2269000 | |
| Brand | INA | |
| Base Type | TKVD14 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

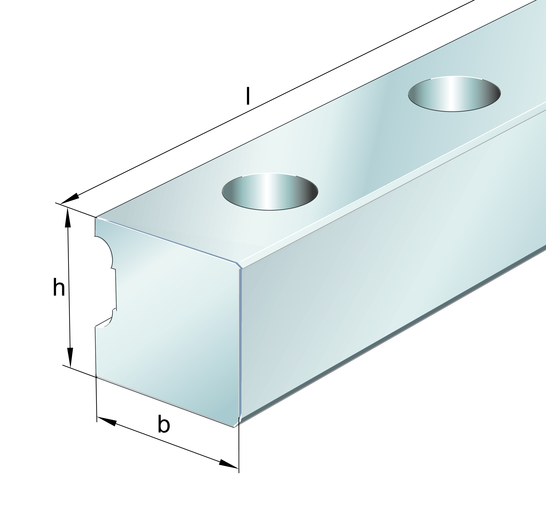

| Construction | half guideway for linear recirculating ball bearing unit | |
| Short Description | Guideways for linear recirculating ball bearing unit |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 13.5 mm | |
| Height (H) | 14 mm | |
| Distance (Ar Min) | 20 mm | |
| Length (H1) | 7.4 mm | |
| Max Length Single Piece Guideway (Lmax) | 1,940 mm | |
| Increment (Jl) | 60 mm | |
| Distance (A5) | 6 mm | |
| Distance (Ar Max) | 53 mm | |
| Increment (Jb) | 6 mm | |
| Tightening Torque (K1 Ma) | 2.5 Nm | |
| Distance (Al Max) | 53 mm | |
| Distance (Al Min) | 20 mm | |
| Bore Diameter (D1) | 3.8 mm |
