Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | SPH210 | |
| Outside diameter | D | 90 mm |
| Width | B | 30 mm |
| Basic dynamic load rating | C | 35 kN |
| Basic static load rating | C0 | 22.7 kN |
| Mass | ≈m | 0.93 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358592 | |
| Brand | INA | |
| Base Type | SPH210 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

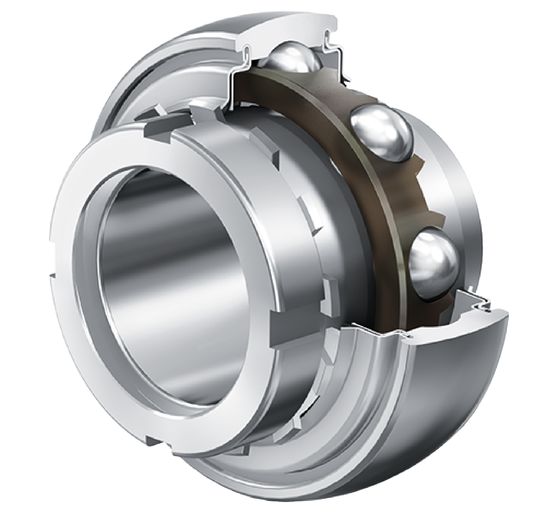

| Construction | Radial insert ball bearing SPH..-KRR-B | |
| Short Description | Radial insert ball bearing |
Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside Diameter (Dsp) | 90 mm | |
| Total Width (B) | 30 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 35,000 N | |
| Basic Static Load Rating, Radial (C0R) | 22,700 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Width Nut And Lock (B2) | 11.25 mm | |
| Width, Outer Ring (C) | 20 mm | |
| Sealing Total Width (C2) | 25.2 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 65 mm | |
| Distance Raceway (S) | 15 mm |
