Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | BE40 | |
| Bore diameter | d | 40 mm |
| Outside diameter | D | 90 mm |
| Basic dynamic load rating | C | 32.5 kN |
| Basic static load rating | C0 | 19.8 kN |
| Fatigue load limit | Pu | 1.03 kN |
| Mass | ≈m | 0.6 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 357242 | |
| Brand | INA | |
| Base Type | BE40 | |
| Old Designation | ["BE40"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

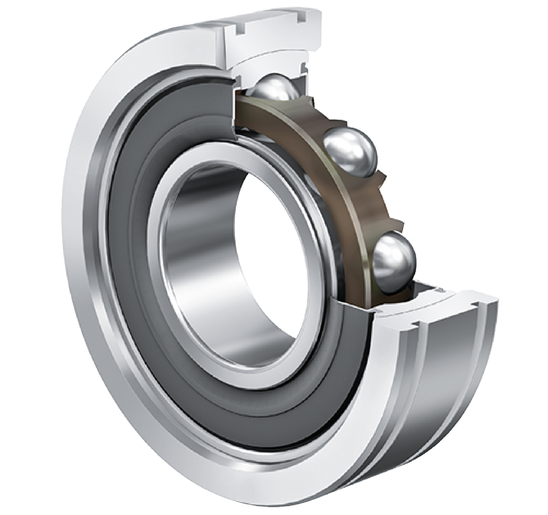

| Construction | Radial insert ball bearings BE, cylindrical outer ring, with steel aligning ring, P seals on both sides | |
| Short Description | Radial insert ball bearing |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 40 mm | |
| Outside Diamater (D) | 90 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 32,500 N | |
| Basic Static Load Rating, Radial (C0R) | 19,800 N | |
| Nut Diameter Lower Tolerance (Nut Diameter) | -0.5 mm | |
| Width Retaining Slot (B) | 2.7 mm | |
| Calculation Factor (F0) | 13.6 | |
| Nut Width Upper Tolerance (Nut Width Up) | 0.3 mm | |
| Upper Distance Ring Groove Tolerance (Upper Distan) | 0.2 mm | |
| Distance Ring Grooves (C1) | 15.4 mm | |
| Width, Outer Ring (A) | 25 mm | |
| Diameter Of Groove (D1) | 86.8 mm | |
| Fatigue Load Limit, Radial (Cur) | 1,030 N |
