Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | MSTU25 | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 203.2 mm |
| Width | B | 104.8 mm |
| Mass | ≈m | 0.59 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 404520 | |
| Brand | INA | |
| Base Type | MSTU25 | |
| Old Designation | ["MSTU25"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

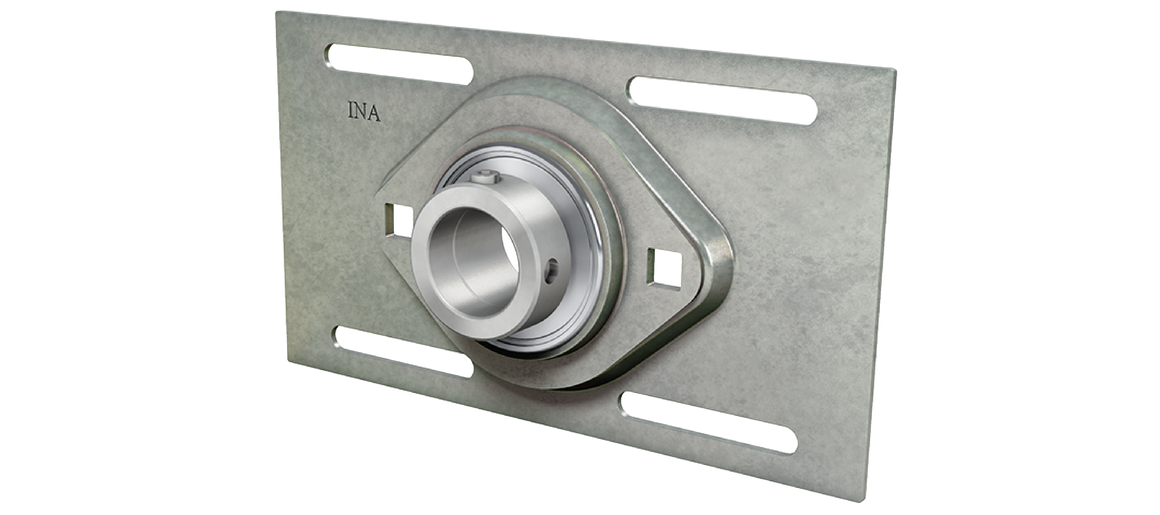

| Construction | Take-up housing units MSTU, sheet steel housing, radial insert ball bearing with eccentric locking collar, P seals, with relubrication facility | |
| Short Description | Take-up housing unit |
Technical Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside Diameter (D) | 203.2 mm | |
| Bore Diameter (D) | 25 mm | |
| Height Flange (H) | 104.8 mm | |
| Total Height Unit (U) | 33.8 mm | |
| Thickness Of Flange (S) | 2 mm |
