Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | PHUSE25 | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 103 mm |
| Width | B | 28 mm |
| Mass | ≈m | 2.535 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 404412 | |
| Brand | INA | |
| Base Type | PHUSE25 | |
| Old Designation | ["PHUSE25"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Take-up housing units PHUSE, cast iron and sheet steel housing, radial insert ball bearing with eccentric locking collar, P seals | |

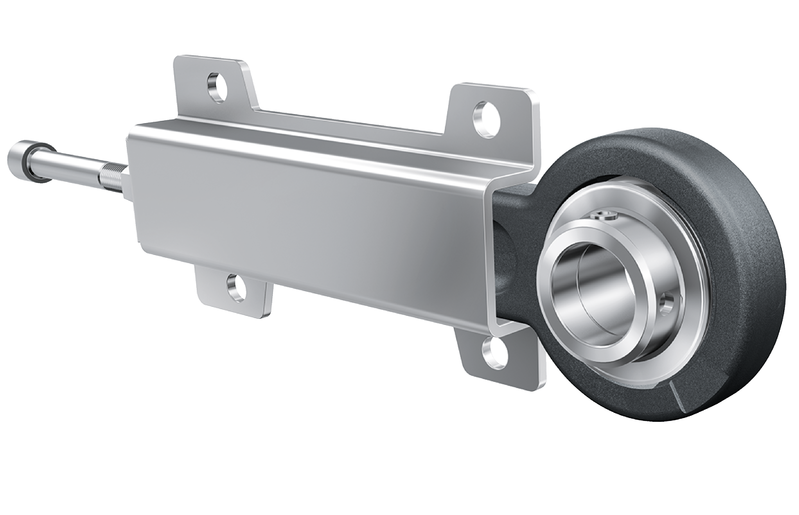

| Short Description | Take-up housing unit |
Technical Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length (L) | 187 mm | |
| Width (B) | 28 mm | |
| Bore Diameter (D) | 25 mm | |
| Height Flange (H) | 103 mm | |
| Thickness Of Flange (S) | 4 mm |
