Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GLE70 | |
| Bore diameter | d | 70 mm |
| Outside diameter | D | 125 mm |
| Width | B | 68.2 mm |
| Basic dynamic load rating | C | 62 kN |
| Basic static load rating | C0 | 44 kN |
| Fatigue load limit | Pu | 2.3 kN |
| Mass | ≈m | 1.89 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358340 | |
| Brand | INA | |
| Base Type | GLE70 | |
| Old Designation | ["GLE70-KRR-B"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

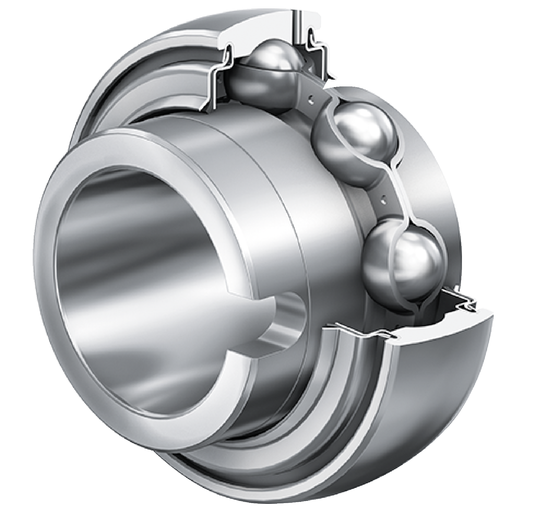

| Construction | Radial insert ball bearings GLE..-KRR-B, spherical outer ring, non-locating bearing, drive slot in inner ring, R seals on both sides | |
| Short Description | Radial insert ball bearing |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 70 mm | |
| Outside Diameter (Dsp) | 125 mm | |
| Total Width (B) | 68.2 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 62,000 N | |
| Basic Static Load Rating, Radial (C0R) | 44,000 N | |
| Hight Retaining Slot (N) | 12 mm | |
| Distance To Lubrication Hole (Ca) | 8.9 mm | |
| Width Retaining Slot (B) | 9 mm | |
| Width, Outer Ring (C) | 28 mm | |
| Calculation Factor (F0) | 14.4 | |
| Rib Diameter Inner Ring (D1) | 85.2 mm | |
| Sealing Total Width (C2) | 32 mm | |
| Outside Diameter Seal (D1) | 109 mm | |
| Distance Raceway (S) | 27 mm | |
| Fatigue Load Limit, Radial (Cur) | 2,300 N |
