Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GLE25 | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 52 mm |
| Width | B | 34.9 mm |
| Basic dynamic load rating | C | 14.9 kN |
| Basic static load rating | C0 | 7.8 kN |
| Fatigue load limit | Pu | 0.41 kN |
| Mass | ≈m | 0.2 kg |
| Minimum operating temperature | Tmin | 150 °C |
| Maximum operating temperature | Tmax | 250 °C |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358322 | |
| Brand | INA | |
| Base Type | GLE25 | |
| Old Designation | ["GLE25-KLL-B-FA164"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

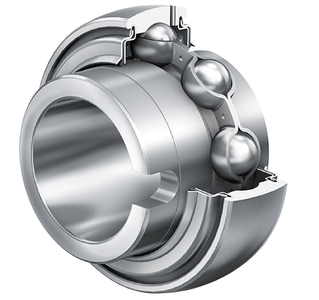

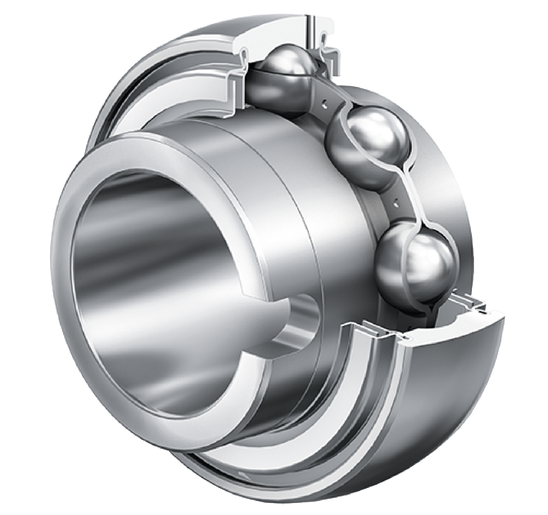

| Construction | Radial insert ball bearing GLE..-XL-KLL-B-FA164 | |
| Short Description | Radial insert ball bearing |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 25 mm | |
| Outside Diameter (Dsp) | 52 mm | |
| Total Width (B) | 34.9 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 14,900 N | |
| Basic Static Load Rating, Radial (C0R) | 7,800 N | |
| Operating Temperature Min. (Tmin) | 150 °C | |
| Operating Temperature Max. (Tmax) | 250 °C | |
| Hight Retaining Slot (N) | 8 mm | |
| Distance To Lubrication Hole (Ca) | 3.9 mm | |
| Width Retaining Slot (B) | 7 mm | |
| Width, Outer Ring (C) | 15 mm | |
| Calculation Factor (F0) | 13.8 | |
| Rib Diameter Inner Ring (D1) | 33.8 mm | |
| Distance Raceway (S) | 14.7 mm | |
| Fatigue Load Limit, Radial (Cur) | 410 N |
