Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | E35 | |
| Bore diameter | d | 35 mm |
| Outside diameter | D | 72 mm |
| Width | B | 37.7 mm |
| Basic dynamic load rating | C | 25.5 kN |
| Basic static load rating | C0 | 15.3 kN |
| Fatigue load limit | Pu | 0.73 kN |
| Mass | ≈m | 0.58 kg |
| Minimum operating temperature | Tmin | -40 °C |
| Maximum operating temperature | Tmax | 180 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 357780 | |
| Brand | INA | |
| Base Type | E35 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

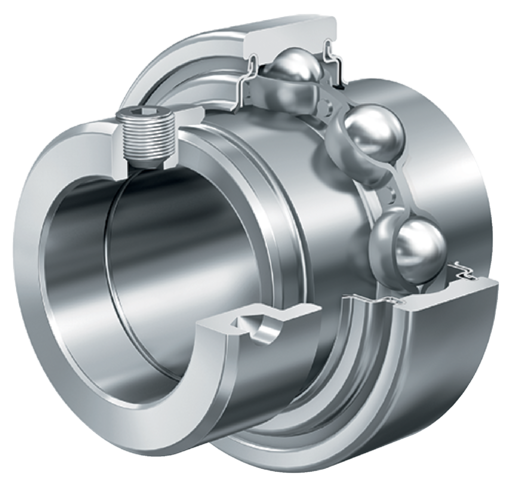

| Construction | Radial insert ball bearing E..-KRR-FA101/106 | |
| Short Description | Radial insert ball bearing |
Technical Data17 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 35 mm | |
| Outside Diamater (D) | 72 mm | |
| Total Width (B) | 37.7 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 25,500 N | |
| Basic Static Load Rating, Radial (C0R) | 15,300 N | |
| Operating Temperature Min. (Tmin) | -40 °C | |
| Locking Collar Total Width (B1) | 51.3 mm | |
| Operating Temperature Max. (Tmax) | 180 °C | |
| Width Of Flats (W) | 5 mm | |
| Width, Outer Ring (C) | 19 mm | |
| Calculation Factor (F0) | 13.8 | |
| Rib Diameter Inner Ring (D1) | 46.8 mm | |
| Sealing Total Width (C2) | 22.6 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 55 mm | |
| Outside Diameter Seal (D1) | 60.3 mm | |
| Distance Raceway (S) | 18.6 mm | |
| Fatigue Load Limit, Radial (Cur) | 730 N |
