Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 209 | |
| Bore diameter | d | 45 mm |
| Outside diameter | D | 85 mm |
| Width | B | 19 mm |
| Basic dynamic load rating | C | 34.5 kN |
| Basic static load rating | C0 | 20.4 kN |
| Mass | ≈m | 0.37 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 100 °C |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 357183 | |
| Brand | INA | |
| Base Type | 209 | |
| Old Designation | ["209-NPP-B-C3"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

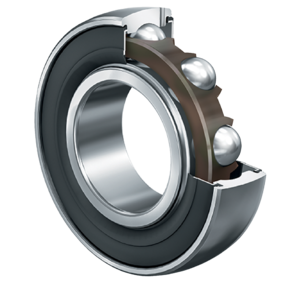

| Construction | Self-aligning deep groove ball bearings 2..-NPP-B, spherical outer ring, inner ring for fit, R seals on both sides | |
| Short Description | Self-aligning deep groove ball bearings |
Technical Data10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 45 mm | |
| Outside Diameter (Dsp) | 85 mm | |
| Width, Inner Ring (B) | 19 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 34,500 N | |
| Basic Static Load Rating, Radial (C0R) | 20,400 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Calculation Factor (F0) | 14.1 | |
| Rib Diameter Sealing Inner Ring (D2) | 53.2 mm | |
| Minimum Chamfer Dimension (Rmin) | 1.1 mm |
