Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | G309 | |
| Bore diameter | d | 45 mm |
| Outside diameter | D | 100 mm |
| Width | B | 25 mm |
| Basic dynamic load rating | C | 56 kN |
| Basic static load rating | C0 | 31.5 kN |
| Mass | ≈m | 0.84 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 100 °C |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 357203 | |
| Brand | INA | |
| Base Type | G309 | |
| Old Designation | ["G309-NPP-B"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Plummer block housing unit G3..-XL-NPP-B, RIBB sheet metal PB | |

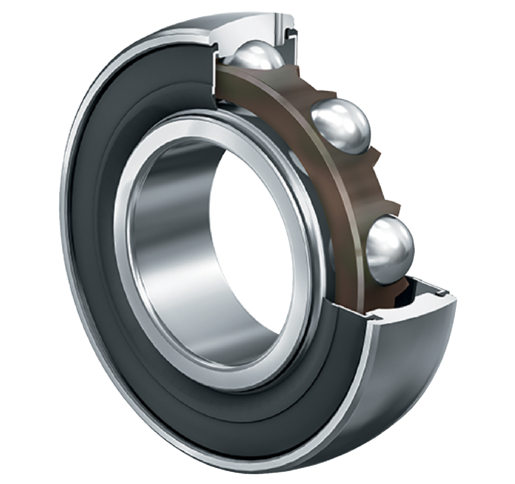

| Short Description | Self-aligning deep groove ball bearings |
Technical Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 45 mm | |
| Outside Diameter (Dsp) | 100 mm | |
| Width, Inner Ring (B) | 25 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 56,000 N | |
| Basic Static Load Rating, Radial (C0R) | 31,500 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Distance To Lubrication Hole (Ca) | 7.6 mm |
