Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | VRE310 | |
| Width | B | 27 mm |
| Height | H | 138 mm |
| Mass | ≈m | 28.5 kg |
Main Dimensions & Performance Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Shaft diameter | d | 50 mm1.969 in |
| Length base | a | 210 mm8.268 in |
| Height | h1 | 138 mm5.433 in |
| Total width with cover | g2 | 381 mm15 in |
| Mass | ≈m | 28.5 kg62.832 lbs |
Dimensions17 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 27 mm1.063 in |
| Width base | b | 60 mm2.362 in |
| Heigth base | c | 25 mm0.984 in |
| Outside diameter bearing | D | 110 mm4.331 in |
| Shaft diameter shoulder | d2 | 60 mm2.362 in |
| Shaft dieameter outside | d4 | 42 mm1.654 in |
| Locking collar width | e | 300.5 mm11.831 in |
| Center heigth | h | 70 mm2.756 in |
| Distance fixing bore | m | 170 mm6.693 in |
| Bore distance width | n | 275 mm10.827 in |
| Size of fixing screws | s | M12 |
| Length shaft total | w1 | 625 mm24.606 in |
| Distance shaft end | w2 | 110 mm4.331 in |
| Length shaft tap | w3 | 112 mm4.409 in |
| Lenght shaft end | w4 | 179 mm7.047 in |
| Length shaft shoulder | w5 | 240 mm9.449 in |
| Lenght shaft end | w7 | 206 mm8.11 in |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1209829 | |
| Brand | FAG | |
| Base Type | VRE310 | |
| SAP material number | 0391855670000 | |
| Base product | 2305160166 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

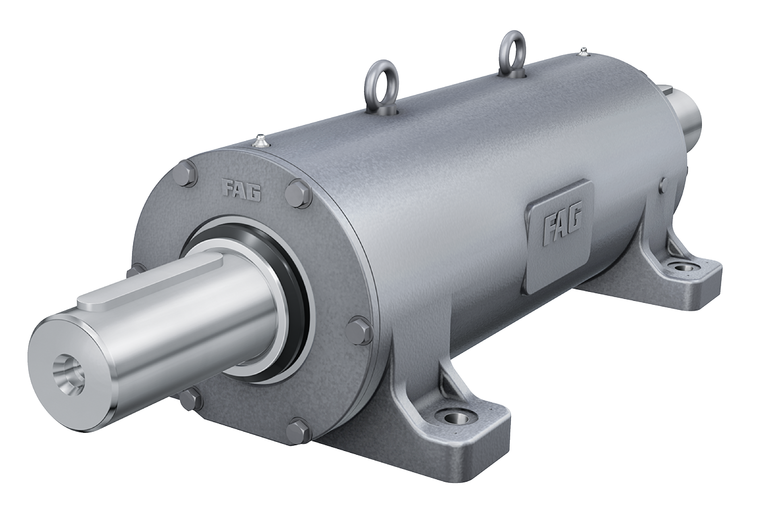

| Construction | Plummer block housing, consisting of housing body VR, shaft VRW and two bearings | |
| Short Description | Plummer block housing unit |
Additional information4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Suitable shaft | VRW310-C | |
| Bearing designation | NU310-E-TVP2-C3 | |
| Reference bearing designation | 2X7310-B-TVP-UA | |
| Housing | VR310-C |
Technical Data10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 27 mm | |
| Center Height (H) | 70 mm | |
| Diameter Shaft (D) | 50 mm | |
| Total Height (H1) | 138 mm | |
| Length Base (A) | 210 mm | |
| Height Base Foot (C) | 25 mm | |
| Lenght Shaft End (W4) | 179 mm | |
| Length Shaft Shoulder (W5) | 240 mm | |
| Length Shaft Total (W1) | 625 mm | |
| Lenght Shaft End (W7) | 206 mm |
