Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 80 mm |
| Outside diameter | D | 205 mm |
| Width | B | 51 mm |
| Mass | ≈m | 10.9 kg |
| Bearing material | GG — Grey cast iron |
Product characteristics1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Material | GG | Grey cast iron |
Main Dimensions & Performance Data7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 80 mm3.15 in |
| Flange width | L | 205 mm8.071 in |
| Height flange | H | 320 mm12.598 in |
| Basic dynamic load rating, radial | Cr | 102,000 N22,931.655 lbf |
| Basic static load rating, radial | C0r | 72,000 N16,187.05 lbf |
| Fatigue load limit, radial | Cur | 3,350 N753.147 lbf |
| Mass | ≈m | 10.9 kg24.03 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Distance fixing bore | J | 265 mm10.433 in |
| Fixing bore | N | 25 mm0.984 in |
| Number of screwing holes | n | 2 |
Dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Height housing | A | 68 mm2.677 in |
| Thickness of flange | A1 | 26 mm1.024 in |
| Distance raceway | A2 | 40 mm1.575 in |
| Width | B | 51 mm2.008 in |
| Locking collar total width | B1 | 86 mm3.386 in |
| Outside diameter eccentric locking collar | d3 | 120 mm4.724 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Manufacturer Identity8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 403804 | |
| Brand | FAG | |
| Base Type | UKFL218 | |
| X Life Marking | n.r. | |
| SAP material number | 0823767000000 | |
| Base product | 2305160230 | |
| Bearing X designation | UKFL218-J7 | |
| Grease application ID | UKFL218-J7 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

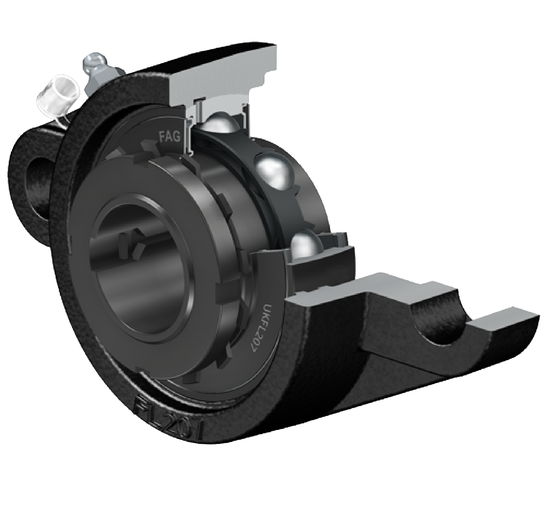

| Construction | Flanged housing unit UKFL | |
| Short Description | Flanged housing unit |
Additional information3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Number of housings | 1 | |
| Housing | FL218 | |
| Bearing designation | UK218 |
Technical Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 51 mm | |
| Bore Diameter (D) | 80 mm | |
| Flange Width (L) | 205 mm | |
| Height Flange (H) | 320 mm | |
| Thickness Of Flange (A1) | 26 mm |
