Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside diameter | D | 100 mm |
| Width | B | 36 mm |
| Basic dynamic load rating | C | 46 kN |
| Basic static load rating | C0 | 29 kN |
| Fatigue load limit | Pu | 1.52 kN |
| Mass | ≈m | 1.24 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 120 °C |
Main Dimensions & Performance Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside diameter | DSP | 100 mm3.937 in |
| Width | B | 36 mm1.417 in |
| Basic static load rating, radial | C0r | 29,000 N6,519.784 lbf |
| Fatigue load limit, radial | Cur | 1,520 N341.727 lbf |
| Basic dynamic load rating, radial | Cr | 46,000 N10,341.727 lbf |
| Mass | ≈m | 1.24 kg2.734 lbs |
Dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width, outer ring | C | 25 mm0.984 in |
| Sealing total width | C2 | 25.6 mm1.008 in |
| Distance to lubrication hole | Ca | 7 mm0.276 in |
| Outside diameter locking collar/locknut | d3 | 75 mm2.953 in |
| Width nut and lock | B2 | 12 mm0.472 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Calculation factors1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Calculation factor | f0 | 14.2 |
Capabilities & suitability7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Lifetimelubricationfreedomfrommaintenance | Yes | |
| Suitable for grease lubrication | Yes | |
| Sealedonbothsides | Yes | |
| Staticangularerrorandmisalignment | Yes |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358742 | |
| Brand | FAG | |
| Base Type | UK211 | |
| X Life Marking | n.r. | |
| SAP material number | 0705491170000 | |
| Base product | 2305080204 | |
| Bearing X designation | UK211 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

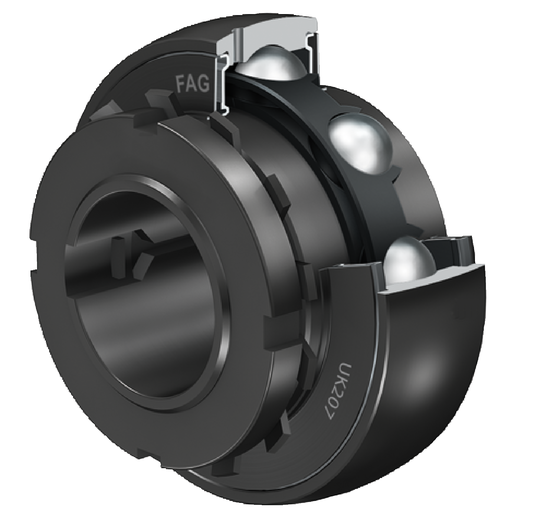

| Construction | Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides | |
| Short Description | Radial insert ball bearing |
Additional information4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Adapter sleeve | H2311-J30QH | |
| Locknut | KM11 | |
| Fuse | MB11 | |
| Sleeve | H.H2311 |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside Diameter (Dsp) | 100 mm | |
| Total Width (B) | 36 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 46,000 N | |
| Basic Static Load Rating, Radial (C0R) | 29,000 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Distance To Lubrication Hole (Ca) | 7 mm | |
| Width Nut And Lock (B2) | 12 mm | |
| Width, Outer Ring (C) | 25 mm | |
| Calculation Factor (F0) | 14.2 | |
| Sealing Total Width (C2) | 25.6 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 75 mm | |
| Fatigue Load Limit, Radial (Cur) | 1,520 N |
