Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 55 mm |
| Outside diameter | D | 130 mm |
| Mass | ≈m | 3.16 kg |
| Bearing material | GG — Grey cast iron |
Product characteristics1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Material | GG | Grey cast iron |
Main Dimensions & Performance Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 55 mm2.165 in |
| Flange width | L | 130 mm5.118 in |
| Height flange | H | 224 mm8.819 in |
| Basic dynamic load rating, radial | Cr | 46,000 N10,341.727 lbf |
| Basic static load rating, radial | C0r | 29,000 N6,519.784 lbf |
| Mass | ≈m | 3.16 kg6.967 lbs |
Mounting dimensions2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Distance fixing bore | J | 184 mm7.244 in |
| Fixing bore | N | 19 mm0.748 in |
Dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Height housing | A | 43 mm1.693 in |
| Thickness of flange | A1 | 20 mm0.787 in |
| Distance raceway | A2 | 25 mm0.984 in |
| Locking collar total width | B1 | 71.4 mm2.811 in |
| Outside diameter eccentric locking collar | d3 | 76 mm2.992 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 4107812 | |
| Brand | FAG | |
| Base Type | UELFL211 | |
| SAP material number | 3053266600000 | |
| Base product | 2305160230 | |
| Mounting Manager ID | UELFL211 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

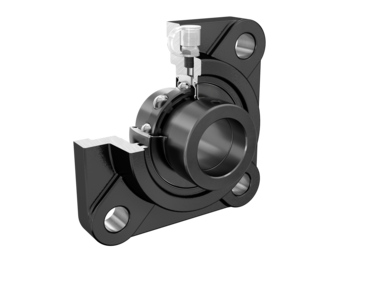

| Construction | Flanged housing unit UEFL, cast iron housing, two-bolt flange, radial insert ball bearing with eccentric locking collar, RSR seals | |
| Short Description | Flanged housing unit |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Housing | GEHFL211-GG | |
| Bearing designation | UEL211 |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 55 mm | |
| Flange Width (L) | 130 mm | |
| Height Flange (H) | 224 mm | |
| Thickness Of Flange (A1) | 20 mm |
