Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 30 mm |
| Outside diameter | D | 80 mm |
| Mass | ≈m | 0.95 kg |
| Bearing material | GG — Grey cast iron |
Product characteristics1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Material | GG | Grey cast iron |
Main Dimensions & Performance Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 30 mm1.181 in |
| Flange width | L | 80 mm3.15 in |
| Height flange | H | 148 mm5.827 in |
| Basic dynamic load rating, radial | Cr | 20,700 N4,653.777 lbf |
| Basic static load rating, radial | C0r | 11,300 N2,540.468 lbf |
| Mass | ≈m | 0.95 kg2.094 lbs |
Mounting dimensions2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Distance fixing bore | J | 117 mm4.606 in |
| Fixing bore | N | 16 mm0.63 in |
Dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Height housing | A | 31 mm1.22 in |
| Thickness of flange | A1 | 14 mm0.551 in |
| Distance raceway | A2 | 18 mm0.709 in |
| Locking collar total width | B1 | 48.5 mm1.909 in |
| Outside diameter eccentric locking collar | d3 | 44 mm1.732 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 4107799 | |
| Brand | FAG | |
| Base Type | UELFL206 | |
| SAP material number | 3053261040000 | |
| Base product | 2305160230 | |
| Mounting Manager ID | UELFL206 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

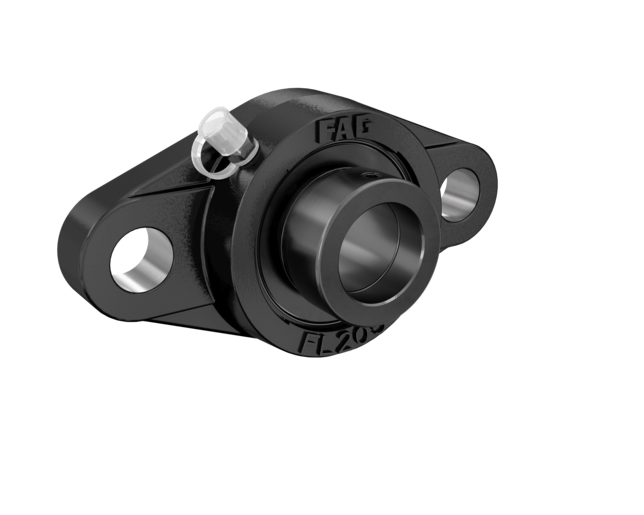

| Construction | Flanged housing unit UEFL, cast iron housing, two-bolt flange, radial insert ball bearing with eccentric locking collar, RSR seals | |
| Short Description | Flanged housing unit |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Housing | GEHFL206-GG | |
| Bearing designation | UEL206 |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 30 mm | |
| Flange Width (L) | 80 mm | |
| Height Flange (H) | 148 mm | |
| Thickness Of Flange (A1) | 14 mm |
