Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 50 mm |
| Outside diameter | D | 143 mm |
| Mass | ≈m | 2.74 kg |
Main Dimensions & Performance Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 50 mm1.969 in |
| Flange width | L | 143 mm5.63 in |
| Total height unit | U | 60.2 mm2.37 in |
| Basic dynamic load rating, radial | Cr | 37,500 N8,430.755 lbf |
| Basic static load rating, radial | C0r | 23,200 N5,215.827 lbf |
| Mass | ≈m | 2.74 kg6.041 lbs |
Mounting dimensions2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Distance fixing bore | J | 111 mm4.37 in |
| Fixing bore | N | 16 mm0.63 in |
Dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Height housing | A | 40 mm1.575 in |
| Thickness of flange | A1 | 18 mm0.709 in |
| Distance raceway | A2 | 22 mm0.866 in |
| Locking collar total width | B1 | 62.8 mm2.472 in |
| Connection thread for lubrication | Q | M6 |
| Outside diameter eccentric locking collar | d3 | 69 mm2.717 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 4107809 | |
| Brand | FAG | |
| Base Type | UELF210 | |
| SAP material number | 3053266350000 | |
| Base product | 2305160228 | |
| Mounting Manager ID | UELF210 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

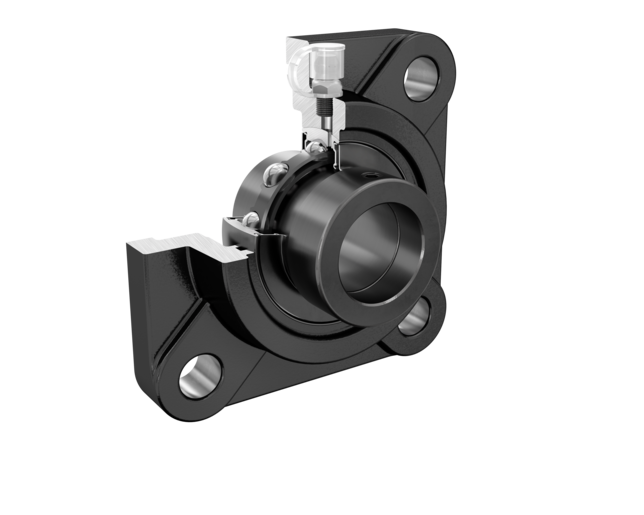

| Construction | Flanged housing units UELF, cast iron housing, four-bolt flange, radial insert ball bearing with eccentric locking collar, RSR seals | |
| Short Description | Flanged housing unit |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Housing | GEHF210-GG | |
| Bearing designation | UEL210 |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 50 mm | |
| Total Height Unit (U) | 60.2 mm | |
| Flange Width (L) | 143 mm | |
| Thickness Of Flange (A1) | 18 mm |
