Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 40 mm |
| Outside diameter | D | 130 mm |
| Mass | ≈m | 2.03 kg |
| Bearing material | GG — Grey cast iron |
Product characteristics1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Material | GG | Grey cast iron |
Main Dimensions & Performance Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 40 mm1.575 in |
| Flange width | L | 130 mm5.118 in |
| Total height unit | U | 56.1 mm2.209 in |
| Basic dynamic load rating, radial | Cr | 34,500 N7,756.295 lbf |
| Basic static load rating, radial | C0r | 19,800 N4,451.439 lbf |
| Mass | ≈m | 2.03 kg4.475 lbs |
Mounting dimensions2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Distance fixing bore | J | 102 mm4.016 in |
| Fixing bore | N | 16 mm0.63 in |
Dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Height housing | A | 36 mm1.417 in |
| Thickness of flange | A1 | 16 mm0.63 in |
| Distance raceway | A2 | 21 mm0.827 in |
| Locking collar total width | B1 | 56.5 mm2.224 in |
| Connection thread for lubrication | Q | M6 |
| Outside diameter eccentric locking collar | d3 | 58 mm2.283 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 4107827 | |
| Brand | FAG | |
| Base Type | UELF208 | |
| SAP material number | 3053288830000 | |
| Base product | 2305160228 | |
| Mounting Manager ID | UELF208 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

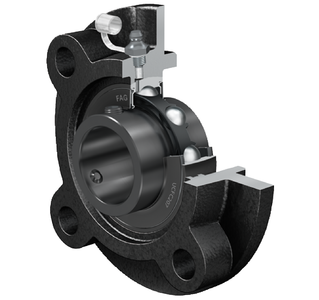

| Construction | Flanged housing units UELF, cast iron housing, four-bolt flange, radial insert ball bearing with eccentric locking collar, RSR seals | |
| Short Description | Flanged housing unit |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Housing | GEHF208-GG | |
| Bearing designation | UEL208 |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 40 mm | |
| Total Height Unit (U) | 56.1 mm | |
| Flange Width (L) | 130 mm | |
| Thickness Of Flange (A1) | 16 mm |
