Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 50 mm |
| Outside diameter | D | 115 mm |
| Width | B | 51.6 mm |
| Mass | ≈m | 2.28 kg |
| Bearing material | GG — Grey cast iron |
Product characteristics1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Material | GG | Grey cast iron |
Main Dimensions & Performance Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 50 mm1.969 in |
| Flange width | L | 115 mm4.528 in |
| Height flange | H | 197 mm7.756 in |
| Total height unit | U | 54.6 mm2.15 in |
| Basic dynamic load rating, radial | Cr | 37,500 N8,430.755 lbf |
| Basic static load rating, radial | C0r | 23,200 N5,215.827 lbf |
| Fatigue load limit, radial | Cur | 1,210 N272.032 lbf |
| Mass | ≈m | 2.28 kg5.027 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Distance fixing bore | J | 157 mm6.181 in |
| Fixing bore | N | 19 mm0.748 in |
| Number of screwing holes | n | 2 |
Dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Height housing | A | 40 mm1.575 in |
| Thickness of flange | A1 | 18 mm0.709 in |
| Distance raceway | A2 | 22 mm0.866 in |
| Width | B | 51.6 mm2.031 in |
| Connection thread for lubrication | Q | M6 |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Manufacturer Identity8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 403648 | |
| Brand | FAG | |
| Base Type | UCFL210 | |
| SAP material number | 0811476000000 | |
| Base product | 2305160227 | |
| Bearing X designation | UCFL210-J7 | |
| Mounting Manager ID | UCFL210-J7 | |
| Grease application ID | UCFL210-J7 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

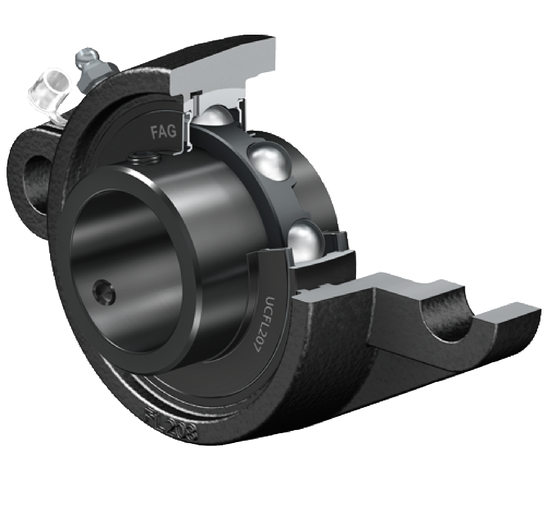

| Construction | Flanged housing unit UCFL | |
| Short Description | Flanged housing unit |
Additional information3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Number of housings | 1 | |
| Housing | FL210 | |
| Bearing designation | UC210 |
Technical Data6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 51.6 mm | |
| Bore Diameter (D) | 50 mm | |
| Total Height Unit (U) | 54.6 mm | |
| Flange Width (L) | 115 mm | |
| Height Flange (H) | 197 mm | |
| Thickness Of Flange (A1) | 18 mm |
