Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 25 mm |
| Outside diameter | D | 52 mm |
| Width | B | 34.1 mm |
| Basic dynamic load rating | C | 14.9 kN |
| Basic static load rating | C0 | 7.8 kN |
| Fatigue load limit | Pu | 0.41 kN |
| Mass | ≈m | 0.2 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 100 °C |
Main Dimensions & Performance Data7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 25 mm0.984 in |
| Outside diameter | DSP | 52 mm2.047 in |
| Width | B | 34.1 mm1.343 in |
| Basic static load rating, radial | C0r | 7,800 N1,753.597 lbf |
| Fatigue load limit, radial | Cur | 410 N92.176 lbf |
| Basic dynamic load rating, radial | Cr | 14,900 N3,349.82 lbf |
| Mass | ≈m | 200 g7.055 oz |
Dimensions7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width, outer ring | C | 17 mm0.669 in |
| Sealing total width | C2 | 17.6 mm0.693 in |
| Distance raceway | S | 14.3 mm0.563 in |
| Rib diameter inner ring | d1 | 33.83 mm1.332 in |
| Distance to lubrication hole | Ca | 4.2 mm0.165 in |
| Distance thread | A | 5 mm0.197 in |
| Width of flats | W | 3 mm0.118 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -20 °C-4 °F |
| Operating temperature max. | Tmax | 100 °C212 °F |
Calculation factors1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Calculation factor | f0 | 13.8 |
Capabilities & suitability7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Lifetimelubricationfreedomfrommaintenance | Yes | |
| Suitable for grease lubrication | Yes | |
| Sealedonbothsides | Yes | |
| Staticangularerrorandmisalignment | Yes |
Manufacturer Identity8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358612 | |
| Brand | FAG | |
| Base Type | UC205 | |
| X Life Marking | n.r. | |
| SAP material number | 0693201600000 | |
| Base product | 2305080204 | |
| Bearing X designation | UC205 | |
| Mounting Manager ID | UC205 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

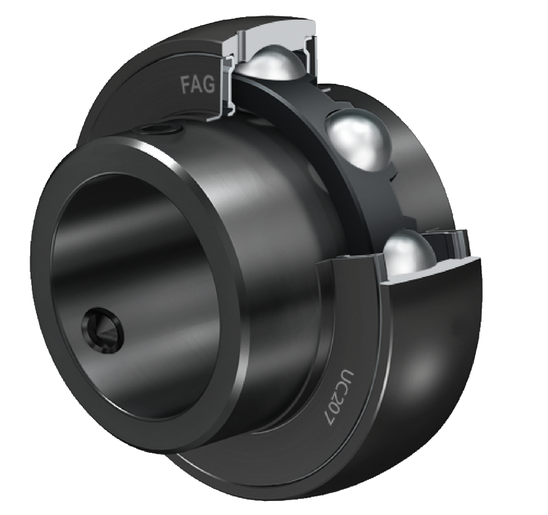

| Construction | Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides | |
| Short Description | Radial insert ball bearing |
Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 25 mm | |
| Outside Diameter (Dsp) | 52 mm | |
| Total Width (B) | 34.1 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 14,900 N | |
| Basic Static Load Rating, Radial (C0R) | 7,800 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Distance To Lubrication Hole (Ca) | 4.2 mm | |
| Width Of Flats (W) | 3 mm | |
| Width, Outer Ring (C) | 17 mm | |
| Calculation Factor (F0) | 13.8 | |
| Rib Diameter Inner Ring (D1) | 33.83 mm | |
| Sealing Total Width (C2) | 17.6 mm | |
| Distance Thread (A) | 5 mm | |
| Distance Raceway (S) | 14.3 mm | |
| Fatigue Load Limit, Radial (Cur) | 410 N |
