Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 26 mm |
| Outside diameter | D | 38 mm |
| Width | B | 4 mm |
| Mass | ≈m | 0.015 kg |
Main Dimensions & Performance Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter seat washer | D2 | 26 mm1.024 in |
| Outside diameter seat washer | D3 | 38 mm1.496 in |
| Height seat washer | C | 4 mm0.157 in |
| Mass | ≈m | 0.015 kg0.033 lbs |
Dimensions1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 0.6 mm0.024 in |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 411734 | |
| Brand | FAG | |
| Base Type | U203 | |
| X Life Marking | n.r. | |
| SAP material number | 0192927750000 | |
| Base product | 2305BS9090_NoSuffix |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

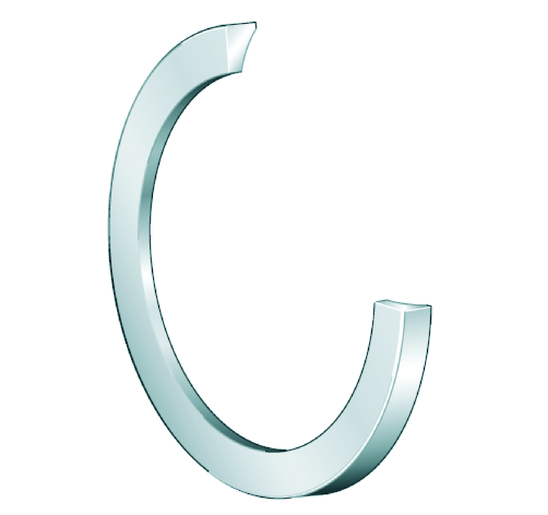

| Construction | Seating washer U2, rolling bearing | |
| Short Description | Seating washer |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter Seat Washer (D2) | 26 mm | |
| Outside Diameter Seat Washer (D3) | 38 mm | |
| Height Seat Washer (C) | 4 mm | |
| Minimum Chamfer Dimension (Rmin) | 0.6 mm |
