Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | NUP2336 | |
| Bore diameter | d | 180 mm |
| Outside diameter | D | 380 mm |
| Width | B | 126 mm |
| Basic dynamic load rating | C | 1680 kN |
| Basic static load rating | C0 | 2330 kN |
| Fatigue load limit | Pu | 260 kN |
| Reference speed | nref | 1120 r/min |
| Limiting speed | nG | 2600 r/min |
| Mass | ≈m | 76.8 kg |
| Precision class | PN — Normal (ISO 492:2023) | |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | MPAX — One Piece Brass Cage Lip Guided | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 150 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | EX | Increased Capacity Design Design Modified |
| Cage | MPAX | One Piece Brass Cage Lip Guided |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Tolerance class | PN | Normal (ISO 492:2023) |
| Number of rows | 1 | Single-row design |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 180 mm7.087 in |
| Outside diameter | D | 380 mm14.961 in |
| Width | B | 126 mm4.961 in |
| Basic dynamic load rating, radial | Cr | 1,680,000 N377,697.842 lbf |
| Basic static load rating, radial | C0r | 2,330,000 N523,830.935 lbf |
| Fatigue load limit, radial | Cur | 260,000 N58,453.237 lbf |
| Limiting speed | nG | 2,600 1/min |
| Reference speed | nϑr | 1,120 1/min |
| Mass | ≈m | 76.8 kg169.315 lbs |
Mounting dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Maximum rib diameter inner ring | d1 | 248 mm9.764 in |
| Minimum rib diameter outer ring | D1 min | 320.8 mm12.63 in |
| Minimum diameter shaft shoulder | da min | 197 mm7.756 in |
| Minimum shaft shoulder | dc min | 250.6 mm9.866 in |
| Maximum diameter of housing shoulder | Da max | 363 mm14.291 in |
| Maximum recess radius | ra max | 3 mm0.118 in |
Dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 4 mm0.157 in |
| Minimum chamfer dimension | r1 min | 4 mm0.157 in |
| Raceway diameter outer ring | E | 339 mm13.346 in |
| Raceway diameter inner ring | F | 227 mm8.937 in |
| Width of loose rib | B3 | 18 mm0.709 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 150 °C302 °F |
Capabilities & suitability6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 374131 | |
| Brand | FAG | |
| Base Type | NUP2336 | |
| SAP material number | 0856089120000 | |
| Base product | 2305090122 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

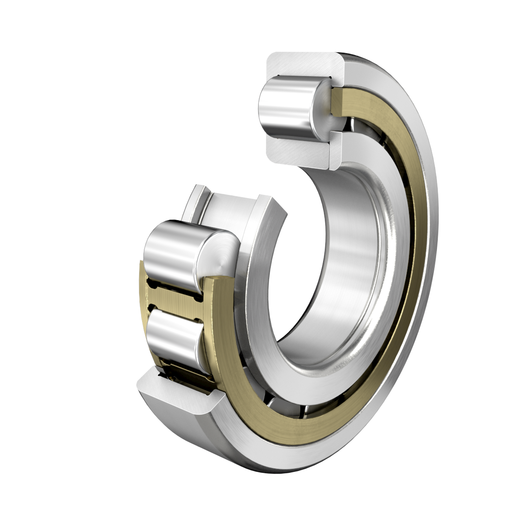

| Construction | Cylindrical roller bearing NUP..-EX-TB-MPAX, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP | |
| Short Description | Cylindrical roller bearing |
Technical Data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 180 mm | |
| Outside Diamater (D) | 380 mm | |
| Total Width (B) | 126 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 1,680,000 N | |
| Basic Static Load Rating, Radial (C0R) | 2,330,000 N | |
| Raceway Diameter Inner Ring (F) | 227 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 197 mm | |
| Width Of Loose Rib (B3) | 18 mm | |
| Operating Temperature Max. (Tmax) | 150 °C | |
| Limiting Speed (Limiting Spe) | 2,600 1/min | |
| Minimum Shaft Shoulder (Dc Min) | 250.6 mm | |
| Reference Speed (Nϑr) | 1,120 1/min | |
| Maximum Recess Radius (Ra Max) | 3 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 363 mm | |
| Maximum Rib Diameter Inner Ring (D1) | 248 mm | |
| Minimum Chamfer Dimension (R1 Min) | 4 mm | |
| Minimum Rib Diameter Outer Ring (D1 Min) | 320.8 mm | |
| Minimum Chamfer Dimension (Rmin) | 4 mm | |
| Raceway Diameter Outer Ring (E) | 339 mm | |
| Fatigue Load Limit, Radial (Cur) | 260,000 N |
