Core specifications15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | NU2060 | |
| Bore diameter | d | 300 mm |
| Outside diameter | D | 460 mm |
| Width | B | 95 mm |
| Basic dynamic load rating | C | 1520 kN |
| Basic static load rating | C0 | 2700 kN |
| Fatigue load limit | Pu | 305 kN |
| Reference speed | nref | 970 r/min |
| Limiting speed | nG | 2250 r/min |
| Mass | ≈m | 58.17 kg |
| Precision class | PN — Normal (ISO 492:2023) | |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | M1A — Two Piece Brass Cage Lip guided | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 150 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | E | Increased Capacity Design |
| Cage | M1A | Two Piece Brass Cage Lip guided |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Tolerance class | PN | Normal (ISO 492:2023) |
| Number of rows | 1 | Single-row design |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 300 mm11.811 in |
| Outside diameter | D | 460 mm18.11 in |
| Width | B | 95 mm3.74 in |
| Basic dynamic load rating, radial | Cr | 1,520,000 N341,726.619 lbf |
| Basic static load rating, radial | C0r | 2,700,000 N607,014.388 lbf |
| Fatigue load limit, radial | Cur | 305,000 N68,570.144 lbf |
| Limiting speed | nG | 2,250 1/min |
| Reference speed | nϑr | 970 1/min |
| Mass | ≈m | 58.17 kg128.243 lbs |
Mounting dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 315 mm12.402 in |
| Maximum diameter of shaft shoulder | da max | 338 mm13.307 in |
| Minimum shaft shoulder | db min | 344 mm13.543 in |
| Maximum diameter of housing shoulder | Da max | 445 mm17.52 in |
| Maximum recess radius | ra max | 3 mm0.118 in |
| Maximum recess radius | ra1 max | 3 mm0.118 in |
Dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 4 mm0.157 in |
| Minimum chamfer dimension | r1 min | 4 mm0.157 in |
| Axial displacement | s | 8 mm0.315 in |
| Raceway diameter outer ring | E | 425 mm16.732 in |
| Raceway diameter inner ring | F | 341 mm13.425 in |
| Minimum rib diameter outer ring | D1 min | 409.9 mm16.138 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 150 °C302 °F |
Capabilities & suitability4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 367856 | |
| Brand | FAG | |
| Base Type | NU2060 | |
| Old Designation | ["NU2060E.M1A"] | |
| SAP material number | 0192382580000 | |
| Base product | 2305090102 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

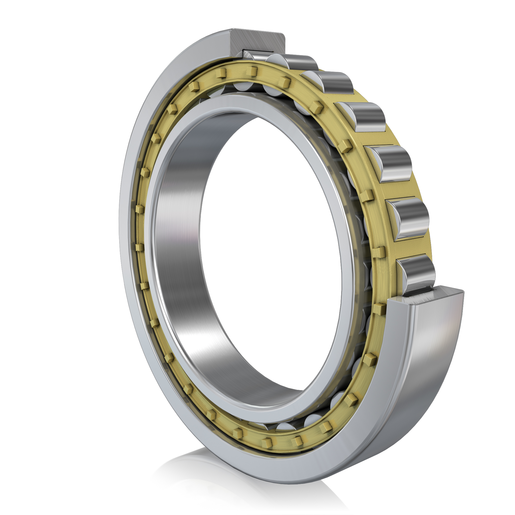

| Construction | Cylindrical roller bearing NU..-E-M1A, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6 | |
| Short Description | Cylindrical roller bearing |
Technical Data22 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 300 mm | |
| Outside Diamater (D) | 460 mm | |
| Total Width (B) | 95 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 1,520,000 N | |
| Basic Static Load Rating, Radial (C0R) | 2,700,000 N | |
| Raceway Diameter Inner Ring (F) | 341 mm | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 315 mm | |
| Operating Temperature Max. (Tmax) | 150 °C | |
| Limiting Speed (Limiting Spe) | 2,250 1/min | |
| Reference Speed (Nϑr) | 970 1/min | |
| Maximum Recess Radius (Ra Max) | 3 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 445 mm | |
| Minimum Chamfer Dimension (R1 Min) | 4 mm | |
| Axial Displacement (S) | 8 mm | |
| Minimum Rib Diameter Outer Ring (D1 Min) | 409.9 mm | |
| Maximum Diameter Of Shaft Shoulder (Da Max) | 338 mm | |
| Maximum Recess Radius (Ra1 Max) | 3 mm | |
| Minimum Chamfer Dimension (Rmin) | 4 mm | |
| Raceway Diameter Outer Ring (E) | 425 mm | |
| Minimum Shaft Shoulder (Db Min) | 344 mm | |
| Fatigue Load Limit, Radial (Cur) | 305,000 N |
