Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside diameter | D | 194.7 mm |
| Width | B | 13.5 mm |
| Mass | ≈m | 2.97 kg |
Main Dimensions & Performance Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Shaft diameter | d | 160 mm6.299 in |
| Width | b | 50 mm1.969 in |
| Overhang outside | g | 13.5 mm0.531 in |
| Outside diameter | da | 194.7 mm7.665 in |
| Mass | ≈m | 2.97 kg6.548 lbs |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 415533 | |
| Brand | FAG | |
| SAP material number | 0825618420000 | |
| Base product | 2307170207_NoSuffix |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

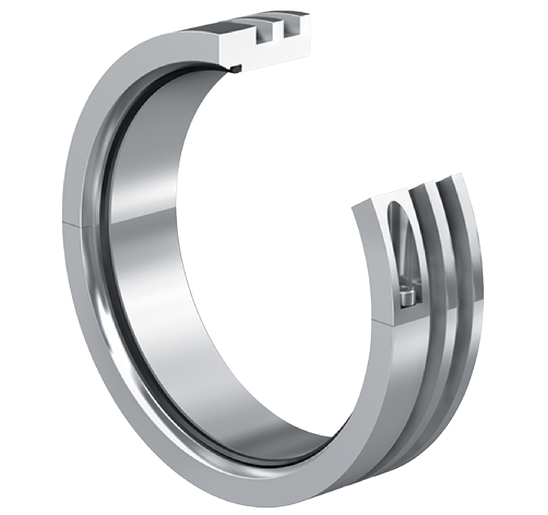

| Short Description | Sealing ring |
Technical Data2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 13.5 mm | |
| Outside Diameter (D) | 194.7 mm |
