Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications15 parameters

Core specifications
Parameter	Symbol	Value
Series		NJ1032
Bore diameter	d	160 mm
Outside diameter	D	240 mm
Width	B	38 mm
Basic dynamic load rating	C	290 kN
Basic static load rating	C0	355 kN
Fatigue load limit	Pu	54 kN
Reference speed	nref	3000 r/min
Limiting speed	nG	5400 r/min
Mass	≈m	6.2 kg
Precision class		PN — Normal (ISO 492:2023)
Internal clearance		C3 (Group 3) — Internal clearance larger than CN
Cage		MPAX — One Piece Brass Cage Lip Guided
Minimum operating temperature	Tmin	-30 °C
Maximum operating temperature	Tmax	150 °C

Product characteristics5 parameters

Product characteristics
Parameter	Symbol	Value
Design		Standard
Cage	MPAX	One Piece Brass Cage Lip Guided
Radial internal clearance	C3 (Group 3)	Internal clearance larger than CN
Tolerance class	PN	Normal (ISO 492:2023)
Number of rows	1	Single-row design

Main Dimensions & Performance Data9 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Bore diameter	d	160 mm6.299 in
Outside diameter	D	240 mm9.449 in
Width	B	38 mm1.496 in
Basic dynamic load rating, radial	Cr	290,000 N65,197.842 lbf
Basic static load rating, radial	C0r	355,000 N79,811.151 lbf
Fatigue load limit, radial	Cur	54,000 N12,140.288 lbf
Limiting speed	nG	5,400 1/min
Reference speed	nϑr	3,000 1/min
Mass	≈m	6.2 kg13.669 lbs

Mounting dimensions5 parameters

Mounting dimensions
Parameter	Symbol	Value
Minimum diameter shaft shoulder	da min	168 mm6.614 in
Maximum diameter of shaft shoulder	da max	178 mm7.008 in
Maximum diameter of housing shoulder	Da max	230 mm9.055 in
Minimum shaft shoulder	dc min	189 mm7.441 in
Maximum recess radius	ra max	2 mm0.079 in

Dimensions7 parameters

Dimensions
Parameter	Symbol	Value
Minimum chamfer dimension	rmin	2.1 mm0.083 in
Minimum chamfer dimension	r1 min	1.5 mm0.059 in
Axial displacement	s	4.3 mm0.169 in
Raceway diameter outer ring	E	220 mm8.661 in
Raceway diameter inner ring	F	180 mm7.087 in
Minimum rib diameter outer ring	D1 min	212.9 mm8.382 in
Maximum rib diameter inner ring	d1	187.8 mm7.394 in

Temperature range2 parameters

Temperature range
Parameter	Symbol	Value
Operating temperature min.	Tmin	-30 °C-22 °F
Operating temperature max.	Tmax	150 °C302 °F

Capabilities & suitability5 parameters

Capabilities & suitability
Parameter	Symbol	Value
Radial load capacity		Yes
Axial load capacity in one direction		Yes
Suitable for grease lubrication		Yes
Suitable for oil lubrication		Yes
Unsealed design		Yes

Manufacturer Identity9 parameters

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value

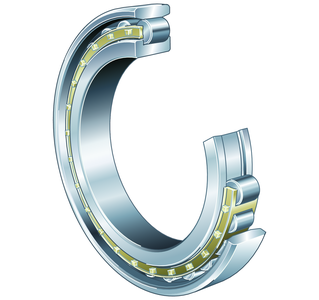

Construction		Cylindrical roller bearing NJ..-XL-MPAX, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
Short Description		Cylindrical roller bearing

Technical Data22 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		160 mm
Outside Diamater (D)		240 mm
Total Width (B)		38 mm
Basic Dynamic Load Rating, Radial (Cr)		290,000 N
Basic Static Load Rating, Radial (C0R)		355,000 N
Raceway Diameter Inner Ring (F)		180 mm
Operating Temperature Min. (Tmin)		-30 °C
Minimum Diameter Shaft Shoulder (Da)		168 mm
Operating Temperature Max. (Tmax)		150 °C
Limiting Speed (Limiting Spe)		5,400 1/min
Minimum Shaft Shoulder (Dc Min)		189 mm
Reference Speed (Nϑr)		3,000 1/min
Maximum Recess Radius (Ra Max)		2 mm
Maximum Diameter Of Housing Shoulder (Da)		230 mm
Maximum Rib Diameter Inner Ring (D1)		187.8 mm
Minimum Chamfer Dimension (R1 Min)		1.5 mm
Axial Displacement (S)		4.3 mm
Minimum Rib Diameter Outer Ring (D1 Min)		212.9 mm
Maximum Diameter Of Shaft Shoulder (Da Max)		178 mm
Minimum Chamfer Dimension (Rmin)		2.1 mm
Raceway Diameter Outer Ring (E)		220 mm
Fatigue Load Limit, Radial (Cur)		54,000 N

FAG NJ1032-XL-MPAX-C3
