Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | N203 | |
| Bore diameter | d | 17 mm |
| Outside diameter | D | 40 mm |
| Width | B | 12 mm |
| Basic dynamic load rating | C | 20.8 kN |
| Basic static load rating | C0 | 14.6 kN |
| Fatigue load limit | Pu | 2.23 kN |
| Mass | ≈m | 0.068 kg |
| Precision class | PN — Normal (ISO 492:2023) | |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Cage | TVP2 — Solid Window Cage made from PA66 | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Product characteristics5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Cage | TVP2 | Solid Window Cage made from PA66 |
| Tolerance class | PN | Normal (ISO 492:2023) |
| Change mark | E | Increased Capacity Design |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Number of rows | 1 | Single-row design |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 17 mm0.669 in |
| Outside diameter | D | 40 mm1.575 in |
| Width | B | 12 mm0.472 in |
| Basic dynamic load rating, radial | Cr | 20,800 N4,676.259 lbf |
| Basic static load rating, radial | C0r | 14,600 N3,282.374 lbf |
| Fatigue load limit, radial | Cur | 2,230 N501.349 lbf |
| Limiting speed for grease lubrication | nG Grease | 22,400 1/min |
| Limiting speed for oil lubrication | nG Oil | 26,500 1/min |
| Mass | ≈m | 0.068 kg0.15 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter shaft shoulder | da | 21 mm0.827 in |
| Diameter of housing shoulder | Da | 36 mm1.417 in |
| Maximum recess radius | ra1 max | 0.6 mm0.024 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | r1 min | 0.3 mm0.012 in |
| Axial displacement | s1 | 1.2 mm0.047 in |
| Raceway diameter outer ring | E | 35.1 mm1.382 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Capabilities & suitability4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes |
Manufacturer Identity8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 367515 | |
| Brand | FAG | |
| Base Type | N203 | |
| SAP material number | 0192171530000 | |
| Base product | 2305090101 | |
| Bearing X designation | N203-E-XL-TVP2 | |
| Mounting Manager ID | N203-E-XL-TVP2 | |
| Grease application ID | N203-E-XL-TVP2 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

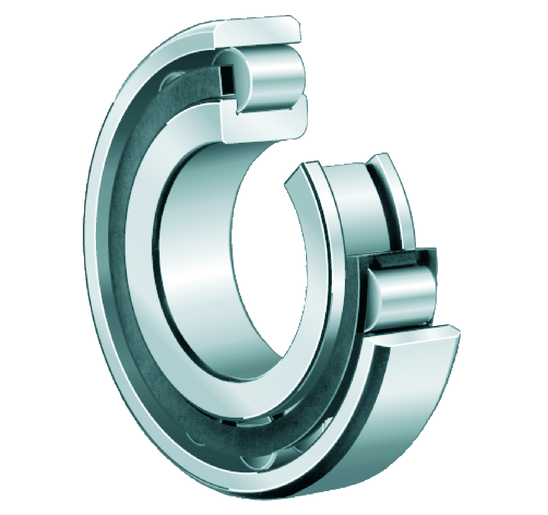

| Construction | Cylindrical roller bearing N2..-E-TVP, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2 | |
| Short Description | Cylindrical roller bearing |
Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 17 mm | |
| Outside Diamater (D) | 40 mm | |
| Total Width (B) | 12 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 20,800 N | |
| Basic Static Load Rating, Radial (C0R) | 14,600 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed For Grease Lubrication (Ng Grea) | 22,400 1/min | |
| Minimum Diameter Shaft Shoulder (Da) | 21 mm | |
| Limiting Speed (Ng Oil) | 26,500 1/min | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Axial Displacement (S1) | 1.2 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 36 mm | |
| Minimum Chamfer Dimension (R1 Min) | 0.3 mm | |
| Maximum Recess Radius (Ra1 Max) | 0.6 mm | |
| Raceway Diameter Outer Ring (E) | 35.1 mm | |
| Fatigue Load Limit, Radial (Cur) | 2,230 N |
