Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications12 parameters

Core specifications
Parameter	Symbol	Value
Bore diameter	d	50 mm
Outside diameter	D	80 mm
Width	B	22 mm
Basic dynamic load rating	C	64 kN
Basic static load rating	C0	93 kN
Fatigue load limit	Pu	11.4 kN
Limiting speed	nG	4050 r/min
Mass	≈m	0.384 kg
Precision class		PN — Normal (ISO 492:2023)
Cage		TVP — Cage made of glass-fiber reinforced plastic, window cage
Minimum operating temperature	Tmin	-30 °C
Maximum operating temperature	Tmax	110 °C

Product characteristics4 parameters

Product characteristics
Parameter	Symbol	Value
Tolerance class	PN	Normal (ISO 492:2023)
Heat treatment		Standard
Cage	TVP	Cage made of glass-fiber reinforced plastic, window cage
Number of rows	1	Single-row design

Main Dimensions & Performance Data11 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Bore diameter	d	50 mm1.969 in
Outside diameter	D	80 mm3.15 in
Width, inner ring	B	22 mm0.866 in
Width, outer ring	C	21.5 mm0.846 in
Basic dynamic load rating, radial	Cr	64,000 N14,388.489 lbf
Basic static load rating, radial	C0r	93,000 N20,908.273 lbf
Fatigue load limit, radial	Cur	11,400 N2,562.95 lbf
Limiting speed	nG	4,050 1/min
Load carrying capacity of snap ring connection	FBR	31,400 N7,059.353 lbf
Maximum axial clamping force		12,800 N2,877.698 lbf
Mass	≈m	0.384 kg0.847 lbs

Mounting dimensions6 parameters

Mounting dimensions
Parameter	Symbol	Value
Maximum diameter of shaft shoulder	da max	56 mm2.205 in
Minimum diameter of shaft shoulder	db min	56 mm2.205 in
Maximum fillet radius of shaft	ra max	1 mm0.039 in
Groove diameter at housing	Dn	81.8 mm3.22 in
Upper limit deviation	ΔDn	0.22 mm0.009 in
Lower limit deviation	ΔDn	0 mm0 in

Dimensions8 parameters

Dimensions
Parameter	Symbol	Value
Minimum chamfer dimension of inner ring back face	r1, 2 min	1 mm0.039 in
Diameter of groove	D1	75.7 mm2.98 in
Width of groove	m/2	1 mm0.039 in
Distance between the apexes of the pressure cones	a	19 mm0.748 in
Guidance rib diameter of inner ring	d1	66.4 mm2.614 in
Stand out inner to outer ring	u	0.02 mm0.001 in
Upper limit deviation	Δu	0.05 mm0.002 in
Lower limit deviation	Δu	0 mm0 in

Temperature range2 parameters

Temperature range
Parameter	Symbol	Value
Operating temperature min.	Tmin	-30 °C-22 °F
Operating temperature max.	Tmax	110 °C230 °F

Calculation factors3 parameters

Calculation factors
Parameter	Symbol	Value
Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y	e	0.42
Dynamic axial load factor	Y	1.43
Static axial load factor	Y0	0.79

Capabilities & suitability4 parameters

Capabilities & suitability
Parameter	Symbol	Value
Radial load capacity		Yes
Axial load capacity in one direction		Yes
Suitable for grease lubrication		Yes
Sealedononeside		Yes

Manufacturer Identity8 parameters

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Tapered roller bearings JK0S, integral tapered roller bearings, lip seal on one side, diameter series 0
Short Description		Tapered roller bearing

Additional information1 parameter

Additional information
Parameter	Symbol	Value
Snap ring		BR80

Technical Data27 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		50 mm
Outside Diameter (D)		80 mm
Width, Inner Ring (B)		22 mm
Basic Dynamic Load Rating, Radial (Cr)		64,000 N
Basic Static Load Rating, Radial (C0R)		93,000 N
Operating Temperature Min. (Tmin)		-30 °C
Limiting Speed (Ng)		4,050 1/min
Operating Temperature Max. (Tmax)		110 °C
Width, Outer Ring (C)		21.5 mm
Fatigue Load Limit, Radial (Cur)		11,400 N
Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E)		0.42
Maximum Diameter Of Shaft Shoulder (Da Max)		56 mm
Minimum Diameter Of Shaft Shoulder (Db Min)		56 mm
Dynamic Axial Load Factor (Y)		1.43
Maximum Fillet Radius (Ra Max)		1 mm
Groove Diameter At Housing (Dn)		81.8 mm
Minimum Chamfer Dimension Of Inner Ring Back Face (R1, 2 M)		1 mm
Diameter Of Groove (D1)		75.7 mm
Guidance Rib Diameter Of Inner Ring (D1)		66.4 mm
Load Carrying Capacity Of Snap Ring Connection (Fbr)		31,400 N
Maximum Axial Clamping Force (Maximum Axia)		12,800 N
Stand Out Inner To Outer Ring (U)		0.02 mm
Upper Limit Deviation (Δdn)		0.22 mm
Upper Limit Deviation (Δu)		0.05 mm
Width Of Groove (M/2)		1 mm
Static Axial Load Factor (Y0)		0.79
Distance Between The Apexes Of The Pressure Cones (A)		19 mm

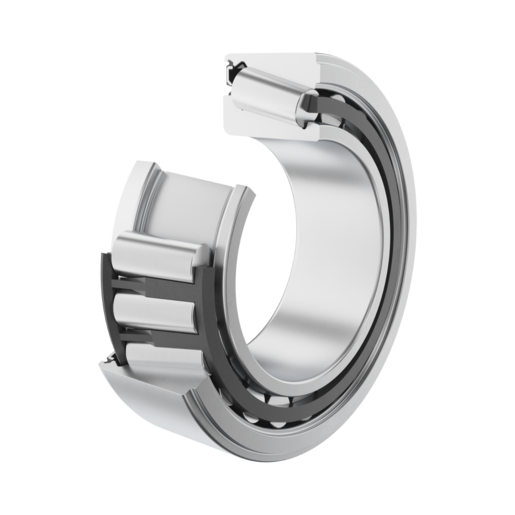

FAG JK0S050
