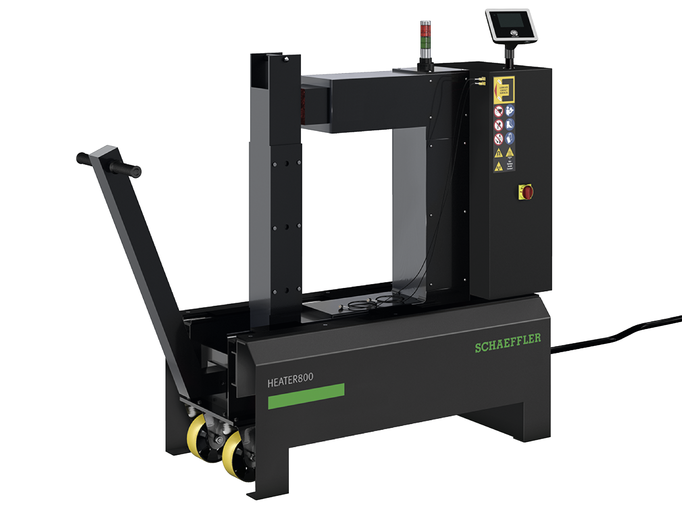

FAG HEATER800

Induction heating device technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Mass≈m: 280 kg
Length HEATER: 1,080 mm / 42.52 in
Width HEATER: 500 mm / 19.685 in
Height HEATER: 1,250 mm / 49.213 in
Dimensiona: 430 mm / 16.929 in
Dimensionb: 490 mm / 19.291 in

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications1 parameter

Core specifications
Parameter	Symbol	Value
Mass	≈m	280 kg

Dimensions5 parameters

Dimensions
Parameter	Symbol	Value
Length HEATER		1,080 mm42.52 in
Width HEATER		500 mm19.685 in
Height HEATER		1,250 mm49.213 in
Dimension	a	430 mm16.929 in
Dimension	b	490 mm19.291 in

Manufacturer Identity5 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		406516
Brand		FAG
Base Type		HEATER800
SAP material number		0923190090000
Base product		230519AB90

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		HEATER
Short Description		Induction heating device

Technical Data10 parameters

Technical Data
Parameter	Symbol	Value
Power Consumption (P)		25.2 kVA
Max. Workpiece Weight (Mb Max)		800 kg
Operating Voltage (U)		400 V
Max. Outer Diameter Workpiece (Dw Max)		1,500 mm
Current Rating (I)		63 A
Height Heater (Height Heate)		1,250 mm
Length Heater (Length Heate)		1,080 mm
Width Heater (Width Heater)		500 mm
Max. Workpiece Weight: Other Component (Mc)		600 kg
Min. Inner Diameter Workpiece (By Using The Ledge In Scope Of Delivery) (Min. Inner D)		150 mm

Technical data6 parameters

Technical data
Parameter	Symbol	Value
Operating voltage	U	400 V
Power frequency	f	50 - 60 Hz
Power consumption	P	25.2 kVA
Current rating	I	63 A
Residual magnetism	HR	< 2 A/cm
Mass	≈m	280 kg617.294 lbs

Workpiece to be heated4 parameters

Workpiece to be heated
Parameter	Symbol	Value
Min. inner diameter workpiece (by using the ledge in scope of delivery)		150 mm5.906 in
Max. outer diameter workpiece	ØAmax	1,500 mm59.055 in
Max. workpiece weight	mb max	800 kg1,763.696 lbs
Max. workpiece weight: other component	mc	600 kg1,322.772 lbs

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: FAG HEATER800
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →
