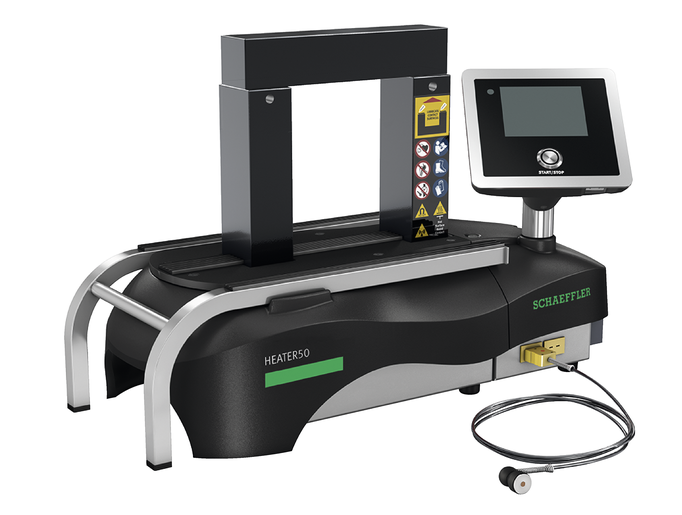

FAG HEATER50

Induction heating device technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Mass≈m: 18 kg
Length HEATER: 450 mm / 17.717 in
Width HEATER: 225 mm / 8.858 in
Height HEATER: 260 mm / 10.236 in
Dimensiona: 140 mm / 5.512 in
Dimensionb: 140 mm / 5.512 in

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications1 parameter

Core specifications
Parameter	Symbol	Value
Mass	≈m	18 kg

Dimensions5 parameters

Dimensions
Parameter	Symbol	Value
Length HEATER		450 mm17.717 in
Width HEATER		225 mm8.858 in
Height HEATER		260 mm10.236 in
Dimension	a	140 mm5.512 in
Dimension	b	140 mm5.512 in

Manufacturer Identity5 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		406514
Brand		FAG
Base Type		HEATER50
SAP material number		0892235860000
Base product		230519AB90

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		HEATER
Short Description		Induction heating device

Technical Data10 parameters

Technical Data
Parameter	Symbol	Value
Power Consumption (P)		3 kVA
Max. Workpiece Weight (Mb Max)		50 kg
Operating Voltage (U)		230 V
Max. Outer Diameter Workpiece (Dw Max)		400 mm
Current Rating (I)		13 A
Height Heater (Height Heate)		260 mm
Length Heater (Length Heate)		450 mm
Width Heater (Width Heater)		225 mm
Max. Workpiece Weight: Other Component (Mc)		40 kg
Min. Inner Diameter Workpiece (By Using The Ledge In Scope Of Delivery) (Min. Inner D)		55 mm

Technical data6 parameters

Technical data
Parameter	Symbol	Value
Operating voltage	U	230 V
Power frequency	f	50 - 60 Hz
Power consumption	P	3 kVA
Current rating	I	13 A
Residual magnetism	HR	< 2 A/cm
Mass	≈m	18 kg39.683 lbs

Workpiece to be heated4 parameters

Workpiece to be heated
Parameter	Symbol	Value
Min. inner diameter workpiece (by using the ledge in scope of delivery)		55 mm2.165 in
Max. outer diameter workpiece	ØAmax	400 mm15.748 in
Max. workpiece weight	mb max	50 kg110.231 lbs
Max. workpiece weight: other component	mc	40 kg88.185 lbs

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: FAG HEATER50
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →
