Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 25 mm |
| Outside diameter | D | 38 mm |
| Width | B | 26 mm |
| Mass | ≈m | 0.07419 kg |
Product characteristics1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Design | Standard | Without |

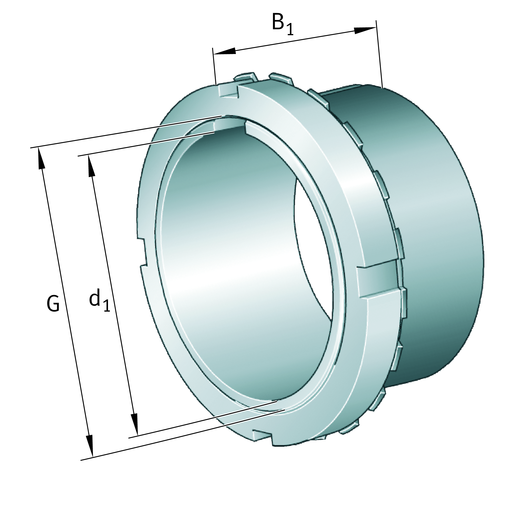

Main Dimensions & Performance Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d1 | 20 mm0.787 in |
| Thread | G | M25x1,5 |
| Sleeve length | B1 | 26 mm1.024 in |
| Mass | ≈m | 74.19 g2.617 oz |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter bearing | d | 25 mm0.984 in |
| Outside diameter nut | d2 | 38 mm1.496 in |
| Width nut and lock | B2 | 8.25 mm0.325 in |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 408201 | |
| Brand | FAG | |
| Base Type | H205 | |
| X Life Marking | n.r. | |
| SAP material number | 0167305340000 | |
| Base product | 230592AA01 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Adapter sleeve H, accessory rolling bearing, complete, mechanical, FP | |
| Short Description | Adapter sleeve |
Additional information3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Locknut | KM5 | |
| Fuse | MB5 | |
| Taper | 1:12 |
Technical Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside Diameter Nut (D2) | 38 mm | |
| Sleeve Length (B1) | 26 mm | |
| Width Nut And Lock (B2) | 8.25 mm | |
| Bore Diameter (D) | 25 mm | |
| Bore Diameter (D1) | 20 mm |
