Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RSL183012-XL | |
| Bore diameter | d | 70 mm |
| Outside diameter | D | 100.28 mm |
| Width | B | 30 mm |
| Basic dynamic load rating | C | 122 kN |
| Basic static load rating | C0 | 129 kN |
| Fatigue load limit | Pu | 22.2 kN |
| Limiting speed | nG | 10900 r/min |
| Mass | ≈m | 0.57 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Product characteristics1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Number of rows | 1 | Single-row design |
Main Dimensions & Performance Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 70 mm2.756 in |
| Outer envelope circle | Ew | 100.28 mm3.948 in |
| Width | B | 30 mm1.181 in |
| Basic dynamic load rating, radial | Cr | 122,000 N27,428.058 lbf |
| Basic static load rating, radial | C0r | 129,000 N29,001.799 lbf |
| Fatigue load limit, radial | Cur | 22,200 N4,991.007 lbf |
| Limiting speed | nG | 10,900 1/min |
| Mass | ≈m | 0.57 kg1.257 lbs |
Mounting dimensions1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 81 mm3.189 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 1.1 mm0.043 in |
| Maximum rib diameter inner ring | d1 | 81.2 mm3.197 in |
| Pitch circle | TK | 88.28 mm3.476 in |
| Length rolling element | LW | 18 mm0.709 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Capabilities & suitability4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2540015 | |
| Brand | FAG | |
| Base Type | RSL183012-XL | |
| SAP material number | 0977035400000 | |
| Base product | 2305090132 | |
| Mounting Manager ID | F-680536.RN |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

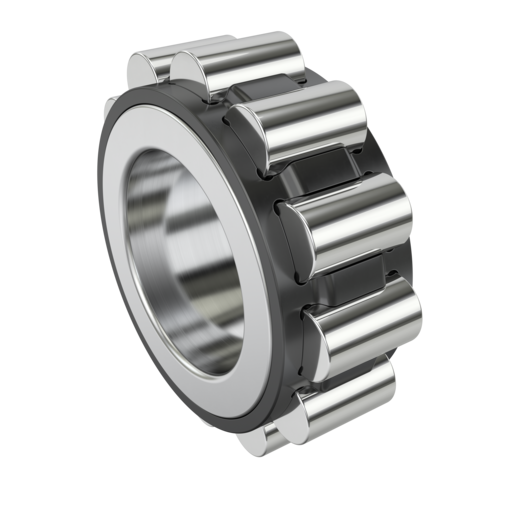

| Construction | Special bearing RSL with cage, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL1830 | |
| Short Description | Cylindrical roller bearing |
Technical Data14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 70 mm | |
| Outer Envelope Circle (Ew) | 100.28 mm | |
| Total Width (B) | 30 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 122,000 N | |
| Basic Static Load Rating, Radial (C0R) | 129,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 81 mm | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 10,900 1/min | |
| Maximum Rib Diameter Inner Ring (D1) | 81.2 mm | |
| Pitch Circle (Tk) | 88.28 mm | |
| Length Rolling Element (Lw) | 18 mm | |
| Minimum Chamfer Dimension (Rmin) | 1.1 mm | |
| Fatigue Load Limit, Radial (Cur) | 22,200 N |
