Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside diameter | D | 144.7 mm |
| Mass | ≈m | 0.79 kg |
Main Dimensions & Performance Data7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Shaft diameter | d | 100 mm3.937 in |
| Sealing shaft diameter | d2 | 115 mm4.528 in |
| Total width | B | 22.5 mm0.886 in |
| Diameter sealing | D2 | 137.5 mm5.413 in |
| Outside diamater | D3 | 144.7 mm5.697 in |
| Overhang housing | g | 8 mm0.315 in |
| Mass | ≈m | 0.79 kg1.742 lbs |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1937927 | |
| Brand | FAG | |
| SAP material number | 0884519680000 | |
| Base product | 2307170202_NoSuffix |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

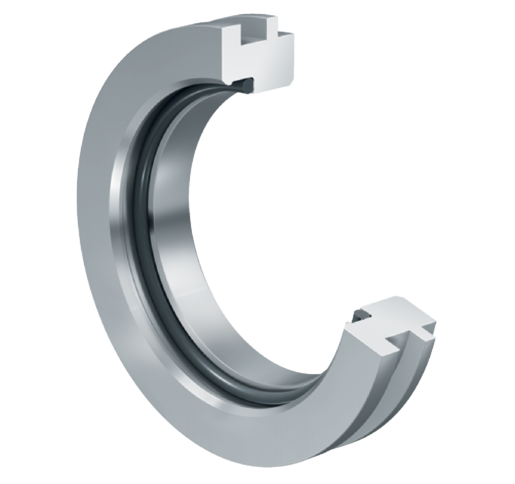

| Construction | Labyrinth seal; ETS; SES-housing | |
| Short Description | Sealing ring |
Technical Data2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter Shaft (D) | 100 mm | |
| Outside Diameter (D) | 144.7 mm |
