Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside diameter | D | 75.5 mm |
| Mass | ≈m | 0.10022 kg |
Main Dimensions & Performance Data7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Shaft diameter | d | 50 mm1.969 in |
| Sealing shaft diameter | d2 | 50 mm1.969 in |
| Total width | B | 11 mm0.433 in |
| Diameter sealing | D2 | 67 mm2.638 in |
| Outside diamater | D3 | 75.5 mm2.972 in |
| Overhang housing | g | 75.5 mm2.972 in |
| Mass | ≈m | 100.22 g3.535 oz |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1936518 | |
| Brand | FAG | |
| SAP material number | 0886454010000 | |
| Base product | 2307170202_NoSuffix |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Felt seals; EFS; SES-housing | |

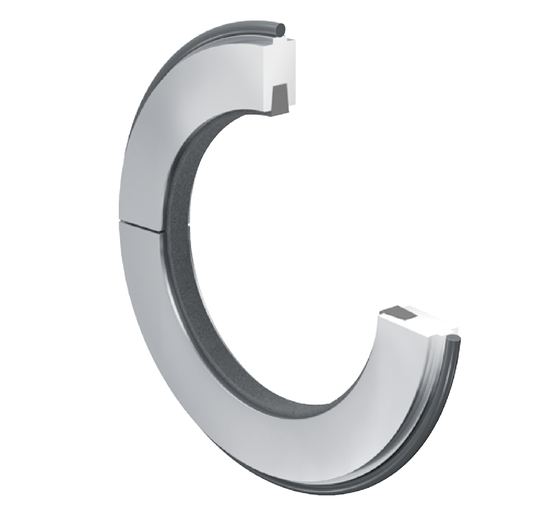

| Short Description | Sealing ring |
Technical Data2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter Shaft (D) | 50 mm | |
| Outside Diameter (D) | 75.5 mm |
