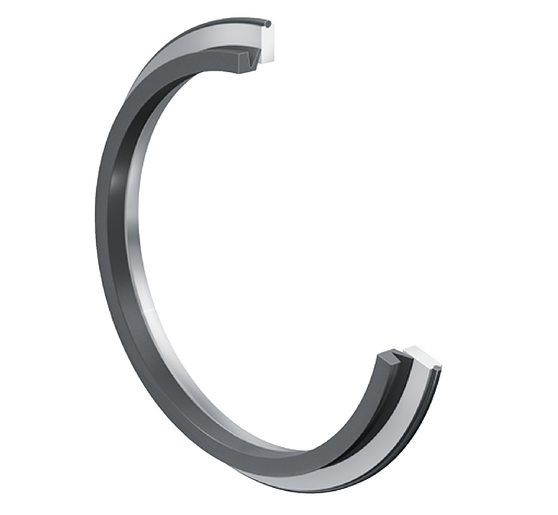

FAG EDV524-624

Sealing rings technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Outside diameterD: 167.5 mm
Mass≈m: 0.54 kg
Shaft diameterd: 110 mm / 4.331 in
Sealing shaft diameterd2: 110 mm / 4.331 in
Diameter sealingD2: 157.5 mm / 6.201 in
Outside diamaterD3: 167.5 mm / 6.594 in

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications2 parameters

Core specifications
Parameter	Symbol	Value
Outside diameter	D	167.5 mm
Mass	≈m	0.54 kg

Main Dimensions & Performance Data5 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Shaft diameter	d	110 mm4.331 in
Sealing shaft diameter	d2	110 mm4.331 in
Diameter sealing	D2	157.5 mm6.201 in
Outside diamater	D3	167.5 mm6.594 in
Mass	≈m	0.54 kg1.19 lbs

Manufacturer Identity4 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		1928968
Brand		FAG
SAP material number		3003874740000
Base product		2307170202_NoSuffix

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		V-ring sealing EDV, SES housing
Short Description		Sealing ring

Technical Data2 parameters

Technical Data
Parameter	Symbol	Value
Diameter Shaft (D)		110 mm
Outside Diameter (D)		167.5 mm
