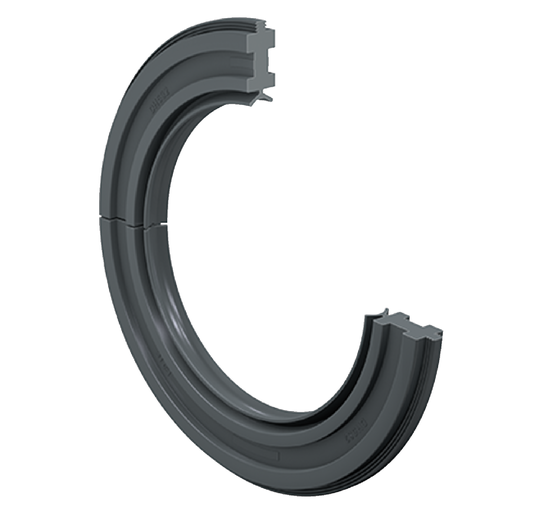

FAG EDH206-306

Sealing rings technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Outside diameterD: 54.5 mm
Shaft diameterd: 30 mm / 1.181 in
Sealing shaft diameterd2: 35 mm / 1.378 in
Total widthB: 9 mm / 0.354 in
Diameter sealingD2: 46.5 mm / 1.831 in
Outside diamaterD3: 54.5 mm / 2.146 in

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications1 parameter

Core specifications
Parameter	Symbol	Value
Outside diameter	D	54.5 mm

Main Dimensions & Performance Data5 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Shaft diameter	d	30 mm1.181 in
Sealing shaft diameter	d2	35 mm1.378 in
Total width	B	9 mm0.354 in
Diameter sealing	D2	46.5 mm1.831 in
Outside diamater	D3	54.5 mm2.146 in

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		2583635
Brand		FAG
Base product		2307170202_NoSuffix

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Two lips seal EDH, für SES housings
Short Description		Sealing ring

Technical Data2 parameters

Technical Data
Parameter	Symbol	Value
Diameter Shaft (D)		30 mm
Outside Diameter (D)		54.5 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: FAG EDH206-306
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →
