Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 7602025 | |

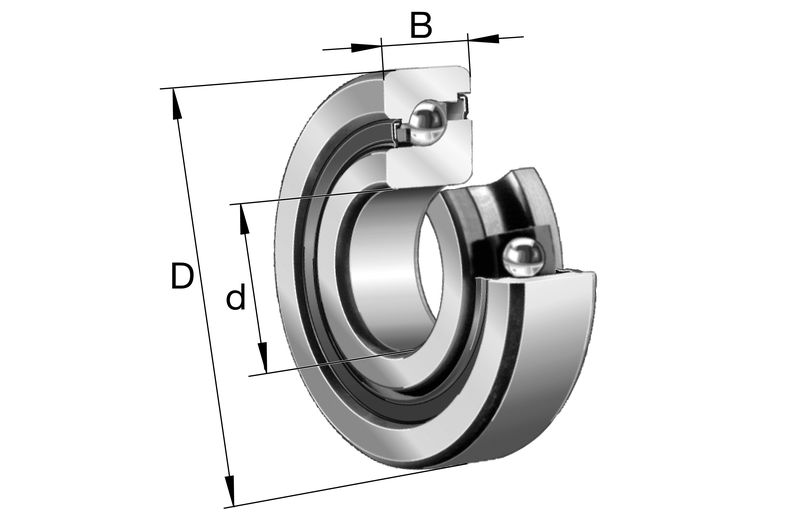

| Bore diameter | d | 25 mm |
| Outside diameter | D | 52 mm |
| Width | B | 15 mm |
| Mass | ≈m | 0.15 kg |
| Sealing | 2RS — Contact lip seals on both sides | |
| Cage | TVP — Plastic cage | |
| Lubricant | Without — Not greased | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Product characteristics4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Cage | TVP | Plastic cage |
| Type of Seal | 2RS | Contact lip seals on both sides |
| Arrangement bearing set | Standard | Single bearing |
| Lubricant | Without | Not greased |
Main Dimensions & Performance Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 25 mm0.984 in |
| Bore diameter upper tolerance | 0 mm0 in | |
| Bore diameter lower tolerance | -0.005 mm0 in | |
| Outside diameter | D | 52 mm2.047 in |
| Outside diameter upper tolerance | 0 mm0 in | |
| Outside diameter lower tolerance | -0.007 mm0 in | |
| Width | B | 15 mm0.591 in |
| Width upper tolerance | 0 mm0 in | |
| Width lower tolerance | -0.12 mm-0.005 in | |
| Basic dynamic load rating, axial | Ca | 23,200 N5,215.827 lbf |
| Basic static load rating, axial | C0a | 50,000 N11,241.007 lbf |
| Fatigue load limit, axial | Cua | 2,280 N512.59 lbf |
| Limiting speed for grease lubrication | nG Grease | 5,100 1/min |
| Thermally safe operating speed | nϑ | 3,800 1/min |
| Mass | ≈m | 150 g5.291 oz |
Mounting dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter of housing | Da | 45 mm1.772 in |
| Diameter of housing clearance | Da | H12 |
| Diameter shaft | da | 32 mm1.26 in |
| Diameter shaft clearance | da | h12 |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 1 mm0.039 in |
| Minimum chamfer dimension | r1 min | 1 mm0.039 in |
| Distance between the apexes of the pressure cones | a | 41 mm1.614 in |
| Contact angle | α | 60 ° |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Capabilities & suitability5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Lifetimelubricationfreedomfrommaintenance | Yes | |
| Suitable for grease lubrication | Yes | |
| Sealedonbothsides | Yes |
Manufacturer Identity8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 395085 | |
| Brand | FAG | |
| Base Type | 7602025 | |
| Old Designation | ["7602025.2RS.TVP"] | |
| X Life Marking | n.r. | |
| SAP material number | 0386553810000 | |
| Base product | 2305100201 | |
| Bearing X designation | 7602025-2RS-TVP |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Axial angular contact ball bearings 7602..-2RS, single direction, with contact angle α = 60°, restricted tolerances, lip seals on both sides | |
| Short Description | Axial angular contact ball bearing |
Additional information7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bearing frictional torque | MR | 0.07 Nm0.052 ft-lbs |
| Rigidity axial | caL | 772 N/µm |
| Axial runout | 2 µm0.00008 in | |
| Recommended INA precision locknut for radial locking | ZM25 | |
| Recommended INA precision locknut for axial locking | AM25 | |
| Tightening torque for the recommended INA precision locknut | MA | 25 Nm18.437 ft-lbs |
| Required locknut force axial | 9,430 N2,120.054 lbf |
Technical Data27 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 25 mm | |
| Outside Diamater (D) | 52 mm | |
| Total Width (B) | 15 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 23,200 N | |
| Basic Static Load Rating, Axial (C0A) | 50,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed For Grease Lubrication (Ng Grea) | 5,100 1/min | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Fatigue Load Limit, Axial (Cua) | 2,280 N | |
| Bore Diameter Lower Tolerance (Bore Diamete) | -0.005 mm | |
| Contact Angle (Α) | 60 ° | |
| Width Lower Tolerance (Width Lower) | -0.12 mm | |
| Minimum Chamfer Dimension (R1 Min) | 1 mm | |
| Width Upper Tolerance (Width Upper) | 0 mm | |
| Bore Diameter Upper Tolerance (Bore Diamete) | 0 mm | |
| Diameter Of Housing (Da) | 45 mm | |
| Required Locknut Force Axial (Required Loc) | 9,430 N | |
| Rigidity Axial (Cal) | 772 N/µm | |
| Outside Diameter Lower Tolerance (Outside Diam) | -0.007 mm | |
| Tightening Torque For The Recommended Ina Precision Locknut (Ma) | 25 Nm | |
| Bearing Frictional Torque (Mr) | 0.07 Nm | |
| Diameter Shaft (Da) | 32 mm | |
| Minimum Chamfer Dimension (Rmin) | 1 mm | |
| Axial Runout (Axial Runout) | 2 µm | |
| Distance Between The Apexes Of The Pressure Cones (A) | 41 mm | |
| Thermally Safe Operating Speed (Nϑ) | 3,800 1/min | |
| Outside Diameter Upper Tolerance (Outside Diam) | 0 mm |
