Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 7007 | |
| Bore diameter | d | 35 mm |
| Outside diameter | D | 62 mm |
| Width | B | 14 mm |
| Basic dynamic load rating | C | 24.3 kN |
| Basic static load rating | C0 | 17.2 kN |
| Fatigue load limit | Pu | 1.2 kN |
| Limiting speed | nG | 6000 r/min |
| Mass | ≈m | 0.149 kg |
| Precision class | P5 — Class 5 (ISO 492:2023) | |
| Sealing | 2RS — Contact seal on both sides | |
| Cage | TVP — Solid cage made of glass-fiber reinforced polyamid PA66 | |
| Lubricant | L260 — Grease (L260/customer specific) | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 100 °C |
Precision classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial ball bearing tolerance equivalent | ABEC 5Derived from ISO P5; not a direct ABEC marking | |
| Mapping basis | ISO 492 / ANSI/ABMA 20The original manufacturer tolerance remains the controlling value. |
Product characteristics7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design variant | B | |
| Type of Seal | 2RS | Contact seal on both sides |
| Cage | TVP | Solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | P5 | Class 5 (ISO 492:2023) |
| Dimensional / heat stabilization | S0 | Rings dimensional stabilized up to 150° |
| Bearing with matched conditions for fitting in pairs | UO | Bearing set clearance-free in O or X arrangement |
| Lubricant | L260 | Grease (L260/customer specific) |
Main Dimensions & Performance Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 35 mm1.378 in |
| Outside diameter | D | 62 mm2.441 in |
| Width | B | 14 mm0.551 in |
| Basic dynamic load rating, radial | Cr | 24,300 N5,463.129 lbf |
| Basic static load rating, radial | C0r | 17,200 N3,866.906 lbf |
| Fatigue load limit, radial | Cur | 1,200 N269.784 lbf |
| Limiting speed | nG | 6,000 1/min |
| Mass | ≈m | 149 g5.256 oz |
Mounting dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter of shaft shoulder | da min | 39.6 mm1.559 in |
| Maximum diameter of housing shoulder | Da max | 57.4 mm2.26 in |
| Maximum diameter of housing shoulder | Db max | 58.8 mm2.315 in |
| Maximum fillet radius of shaft | ra max | 1 mm0.039 in |
| Maximum fillet radius of housing | ra1 max | 0.6 mm0.024 in |
Dimensions9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 1 mm0.039 in |
| Minimum chamfer dimension | r1 min | 0.6 mm0.024 in |
| Shoulder diameter on outer ring wide side face | D1 | 53.36 mm2.101 in |
| Caliber diameter on outer ring wide side face | D2 | 54 mm2.126 in |
| Caliber diameter on outer ring small side face | D3 | 58.94 mm2.32 in |
| Shoulder diameter on inner ring wide side face | d1 | 47.02 mm1.851 in |
| Caliber diameter on inner ring wide side face | d2 | 43.64 mm1.718 in |
| Distance between the apexes of the pressure cones | a | 27.9 mm1.098 in |
| Contact angle | α | 40 ° |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 100 °C212 °F |
Capabilities & suitability5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Lifetimelubricationfreedomfrommaintenance | Yes | |
| Suitable for grease lubrication | Yes | |
| Sealedonbothsides | Yes |
Manufacturer Identity8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 360219 | |
| Brand | FAG | |
| Base Type | 7007 | |
| X Life Marking | XL | |
| SAP material number | 0812790000000 | |
| Base product | 2305080301 | |
| Bearing X designation | 7007-B-XL-2RS-TVP-P5-L260-UO | |
| Mounting Manager ID | 7007-B-XL-2RS-TVP-P5-L260-UO |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

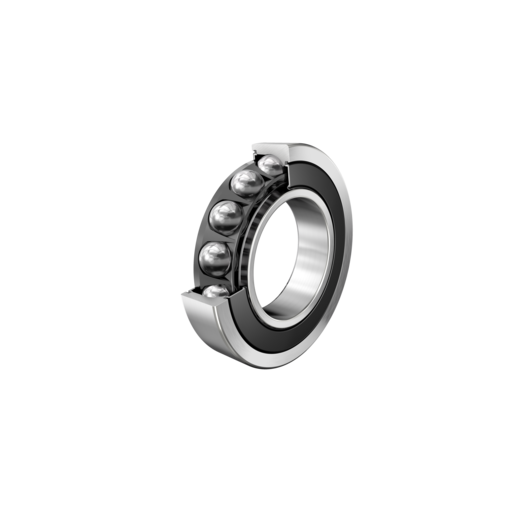

| Construction | Angular contact ball bearing 70..-B-XL-2RS-TVP, single row, X-life, seals, plastic cage | |
| Short Description | Angular contact ball bearing |
Additional information2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Tolerance for axial clearance or preload per set | Tol(+) | 6 µm0.00024 in |
| Axial clearance per set min. | Amin | 0 mm0 in |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 35 mm | |
| Outside Diameter (D) | 62 mm | |
| Width (B) | 14 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 24,300 N | |
| Basic Static Load Rating, Radial (C0R) | 17,200 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 6,000 1/min | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Caliber Diameter On Outer Ring Small Side Face (D3) | 58.94 mm | |
| Caliber Diameter Outer Ring (D2) | 54 mm | |
| Maximum Diameter Of Housing Shoulder (Db Max) | 58.8 mm | |
| Tolerance For Axial Clearance Or Preload Per Set (Tol(+)) | 6 µm | |
| Fatigue Load Limit, Radial (Cur) | 1,200 N | |
| Minimum Diameter Shaft Shoulder (Da Min) | 39.6 mm | |
| Shoulder Diameter Inner Ring (D1) | 47.02 mm | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 57.4 mm | |
| Minimum Chamfer Dimension (Rmin) | 1 mm | |
| Caliber Diameter Inner Ring (D1) | 43.64 mm | |
| Maximum Fillet Radius (Ra Max) | 1 mm | |
| Maximum Recess Radius (Ra1 Max) | 0.6 mm | |
| Shoulder Diameter Outer Ring (D1) | 53.36 mm | |
| Minimum Chamfer Dimension (R1 Min) | 0.6 mm | |
| Contact Angle (Α) | 40 ° | |
| Distance Between The Apexes Of The Pressure Cones (A) | 27.9 mm |
